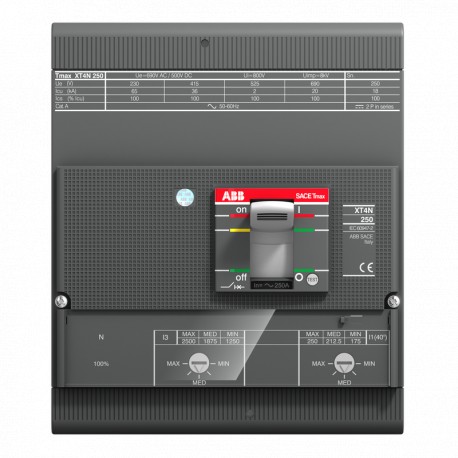

ABB 1SDA068359R1 1SDA068359R1 ABB XT4H250 TMA R250 Im2500 4P F F N50% View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068359R1 ABB XT4H250 TMA R250 Im2500 4P F F N50%

1SDA068359R1

068359

ABB

1 Pcs.

XT4H250 TMA R250 Im2500 4P F F N50% XT4H 250 TMA 250-2500 4p F F InN=50%

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 56.30 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2351
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108469A1857
9AKK108468A1892
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP571db8c6-6a5f-4ae7-9512-95139f2f36eb Italy (IT)
Simplified SCIP119a6d6f-4488-4da8-9203-1785beaf279e Germany (DE)
92508ba4-e381-457a-803d-4c20fceaec96 France (FR)
536d64b3-3620-4c75-aa4f-6580c6bb36a9 Sweden (SE)
6b8d14fd-2e34-47e4-bdf2-5df52e44af64 Germany (DE)
d9330861-203a-4513-99bc-d0e392d86712 Germany (DE)
ccd3f77c-730a-4c24-b18d-bfd975905f58 France (FR)
fee1db6e-ae87-4b16-b47b-797614a84c33 Netherlands (NL)
e86a4794-5d20-4c90-bbd3-ca6048f5d30a Spain (ES)
24f1af20-ad04-49a6-9a43-673595650f39 Netherlands (NL)
a7937485-98f9-48fa-bab7-51dbf5def2e4 Poland (PL)
0a4f61b4-9c67-45d3-90a5-e62eb6aa1f0d Norway (NO)
5224b044-d956-4588-ad85-a409979e79b0 Finland (FI)
d4a47e4f-d8d7-48ed-8fa3-67423918b192 Netherlands (NL)
e42866ab-67f9-4e16-942d-0dc9e1e44cda Germany (DE)
71dc626c-7226-4a7c-acfb-274b65c2f20f Denmark (DK)
74a45bf5-394f-47ec-81ed-82fe2dcb605b Germany (DE)
c46d23ce-a8a2-4a12-9985-b3d83b2ae571 Croatia (HR)
e706a55a-9588-4736-8046-49db473baf81 Czech Republic (CZ)
b9d8b2df-1346-4b5c-8ebc-c7c5b049bb6f Poland (PL)
0873d7ea-c065-49fd-b4eb-f951b105e712 Netherlands (NL)
d8bd6c62-f9fb-43a1-a617-718a05e878d0 Netherlands (NL)
40034fe5-617c-4e1b-bf07-0021e575ff36 Estonia (EE)
b2dce1bc-5eb9-4124-bfc4-fc3e542d345a Greece (GR)
21267a55-5a49-415b-a24e-4682d763496f Portugal (PT)
9c1d8b1f-46d8-4616-a816-02a76c6990de Bulgaria (BG)
a434ab62-0b6c-4b4a-bdd8-b7c66123b7f7 Sweden (SE)
22d7c79e-67e9-4fa3-8b57-07f8dc221157 Poland (PL)
Ordering
Order Code US and CanadaXT4HEN250BFF000XXX
EAN8015644022655
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height160 mm
Product Net Depth / Length82.5 mm
Product Net Weight3.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width145 mm
Package Level 1 Height210 mm
Package Level 1 Depth / Length168 mm
Package Level 1 Gross Weight3.5 kg
Package Level 1 EAN8015644022655
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 85..200 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 16.44 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)250 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)1250…2500 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 45 kA
(690 V AC) 15 kA
(250 V DC) 2 Poles in Series 70 kA
(500 V DC) 2 Poles in Series 70 kA
(500 V DC) 3 Poles in Series 70 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 45 kA
(690 V AC) 15 kA
(250 V DC) 2 Poles in Series 70 kA
(500 V DC) 2 Poles in Series 70 kA
(500 V DC) 3 Poles in Series 70 kA
Rated Uninterrupted Current (Iu)250 A
Recommended Screw DriverMain Circuit M8
ReleaseTMA
Release TypeTM
Setting Range175...250 A
Short-Circuit Performance LevelH
StandardsIEC60947-2
Sub-typeXT4
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque8 N·m
VersionF
CAD Dimensional Drawing1SDH001295R0677
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5529
GL Certificate1SDL000163R0095
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000722R0100
Mechanical Drawings1SDH000722R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000722R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
