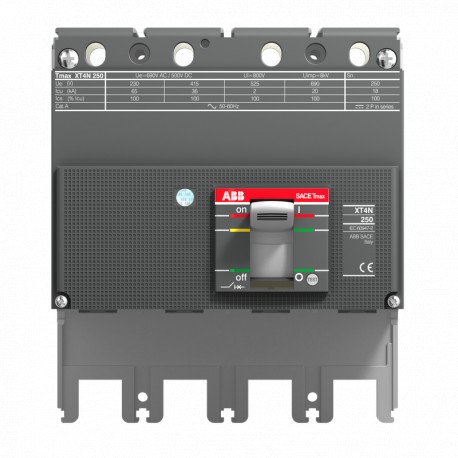

1SDA068295R1 ABB XT4S160 PART OF 4P F F INTERRUPTION
1SDA068295R1
068295
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed as part of a multi-pole distribution assembly, this 1SDA068295R1 ABB XT4S160 PART OF 4P F F INTERRUPTION component provides reliable interruption functionality within low-voltage electrical systems. Such modular parts are utilized during switchgear assembly and maintenance to ensure seamless current disruption and safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 56.30 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2351
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108469A1857
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: ff8f6b2e-2cf2-4ef3-bc09-d8807c6d04ea Italy (IT)
- Simplified SCIP: 9f9e86e9-c5ad-4b07-8e1c-f6cc254c9bd6 Hungary (HU)
- E-Number (Finland): 3641072
- EAN: 8015644022068
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2351 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| 9AKK108468A1892 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | ff8f6b2e-2cf2-4ef3-bc09-d8807c6d04ea Italy (IT) |
| Simplified SCIP | 9f9e86e9-c5ad-4b07-8e1c-f6cc254c9bd6 Hungary (HU) |
| 08de2cee-3226-4e30-b6dc-a0fc5a8dc371 France (FR) | |
| 64e86673-90e4-4e9e-b09e-803f3f7891c7 Spain (ES) | |
| 434f92c0-229b-4f37-aded-b6214f71bf3d Belgium (BE) | |
| f0f87fd8-8c67-47b8-bbf0-587134dbcc3e Germany (DE) | |
| 99478079-21f7-460d-a8fd-3643c2a03a03 Czech Republic (CZ) | |
| 30f01bbb-3752-42da-837f-3389998ddc0a Germany (DE) | |
| c91e8fb5-c9cb-49fe-a538-bffb95b18922 Sweden (SE) | |
| 7a1a3749-2a66-4f18-8979-e591cce0f730 Denmark (DK) | |
| 3e7af871-f903-4db5-8c72-bc4ea8374396 Germany (DE) | |
| 9e82698c-7c8a-4893-8438-a6a813a9f8d4 Croatia (HR) | |
| c6db457a-16ba-4e59-9e83-fac9daa25fde Germany (DE) | |
| 94d2d19f-4be4-4c48-aa94-bb0605b36de8 Poland (PL) | |
| 68614f4a-af89-42ae-9ecd-03d00eab6508 Poland (PL) | |
| 8bbbf0b6-f128-4945-932c-771692424cfc Bulgaria (BG) | |
| c411ee69-9a36-4446-b010-90f87755c1ca Sweden (SE) | |
| f6f1b87d-27bd-4f2c-b9c2-1129274d11cb Netherlands (NL) | |
| fb38565e-71eb-4d26-b47c-2d949fb7fdb0 Norway (NO) | |
| 777f1d13-21b3-4a78-a3bc-ef8b0dbc686f France (FR) | |
| d7e5f17f-8221-4ded-977c-407ab56d71e5 Greece (GR) | |
| ff126bdc-7cac-4af9-9b2c-a70998cb9eaf Germany (DE) | |
| b8fb8899-2763-4dad-a83a-cd009acba78d Portugal (PT) | |
| ff6e3995-96fe-4d7f-adbf-91cb89d51682 Estonia (EE) | |
| 2f98ecba-7ebe-4ab5-8296-1242eb022f4f Finland (FI) | |
| 9d09a8c8-ecd3-4f59-84b4-de7f3abf292a Poland (PL) | |
| 5e4d6c85-1a8b-406d-b193-802f3aaa618f Hungary (HU) | |
| 8715d2ae-2a16-4fd5-8af2-21b964bae037 Belgium (BE) | |
| Ordering | |
| E-Number (Finland) | 3641072 |
| EAN | 8015644022068 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 160 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.65 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 171 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Depth / Length | 151 mm |
| Package Level 1 Gross Weight | 3.1 kg |
| Package Level 1 EAN | 8015644022068 |
| Additional Information | |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Version | F |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| GL Certificate | 1SDL000163R0095 |
| LR Certificate | 1SDL000163R0100 |
| Instructions and Manuals | 1SDH000722R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
