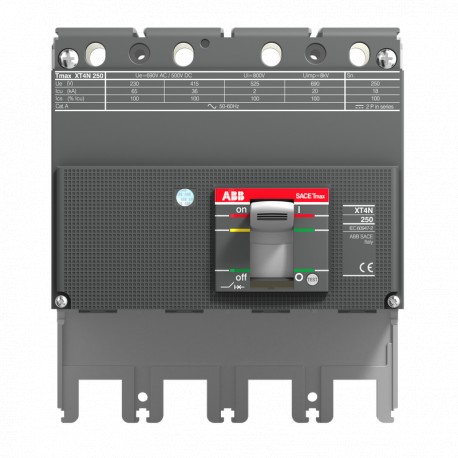

ABB 1SDA068294R1 1SDA068294R1 ABB XT4N160 PART OF 4P F INTERRUPTION View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068294R1 ABB XT4N160 PART OF 4P F INTERRUPTION

1SDA068294R1

068294

ABB

1 Pcs.

XT4N160 PART OF 4P F INTERRUPTION XT4N 160 BREAKING PART 4p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 56.30 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2351
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108469A1857
9AKK108468A1892
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP3123326c-8a97-4460-921f-2bc45dd71b6f Italy (IT)
Simplified SCIPd3f49fee-a075-40b8-86a2-409cd2b3366e Croatia (HR)
00a8dfcd-6786-422a-bb28-f5e73df312d9 Germany (DE)
ccc17380-3def-4d65-b55a-84c49446be77 Estonia (EE)
b86bf528-e065-43b8-8106-eb6f76cbe72b Belgium (BE)
469d5e55-7ff7-428d-8564-2ede20fc0787 France (FR)
efdd6957-30b2-4e56-8293-01211fd6843a Poland (PL)
624bb414-afba-4778-8ef9-e01489937815 Portugal (PT)
cccd3c11-db39-4761-ac20-172d3ea8c991 Germany (DE)
f558dced-d8e3-44b0-9d0d-f00fbfb95f12 Sweden (SE)
685d4c97-daf2-4a74-9ba6-0468b92b8834 Germany (DE)
52327ae8-7f22-456d-adf1-740fd9400ec9 Denmark (DK)
b9630a39-f8c9-4f2a-af05-446bde1af475 Czech Republic (CZ)
3647ac84-5a65-4342-8177-96aff9246bd3 Germany (DE)
bb726ba7-e068-45aa-a0f8-cf19ccf35f43 France (FR)
ee5d2666-eaa5-4e99-b0be-f66a500bebb6 Spain (ES)
0089c950-1d0f-4120-a895-2175c594f5b1 Belgium (BE)
5c9d06a5-614c-4949-8a2a-a98ea681fc84 Hungary (HU)
8190c43c-aafb-4908-84ef-4f2900d00968 Greece (GR)
bcf322a6-fb33-4f1b-8f4c-6134e3f63fbd Poland (PL)
271868ed-09ee-4b94-bdd9-6cd44d3d4079 Germany (DE)
31b557a5-6ea0-4ca8-83c9-2c0775c723e5 Finland (FI)
1b206d16-0cd6-45e3-85af-4102e5b5bd65 Poland (PL)
e0bc30d3-6cd9-40e3-a7d6-308cc442fa26 Netherlands (NL)
907aa1fd-1b6b-4fc2-a655-a3424d60c78f Norway (NO)
cba70fe0-1489-4b8b-9e6c-ecff94c1bcba Sweden (SE)
93671f06-ceb9-495d-8e46-78115e1f3a2e Bulgaria (BG)
62b4ec83-3777-4229-9386-8ba26f92de4d Hungary (HU)
Ordering
EAN8015644022051
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height160 mm
Product Net Depth / Length82.5 mm
Product Net Weight2.65 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width171 mm
Package Level 1 Height215 mm
Package Level 1 Depth / Length151 mm
Package Level 1 Gross Weight3.1 kg
Package Level 1 EAN8015644022051
Additional Information
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeBreaking Part
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
Rated Uninterrupted Current (Iu)160 A
Short-Circuit Performance LevelN
StandardsIEC60947-2
Sub-typeXT4
Terminal Connection TypeFront
VersionF
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5529
GL Certificate1SDL000163R0095
LR Certificate1SDL000163R0100
Instructions and Manuals1SDH000722R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
