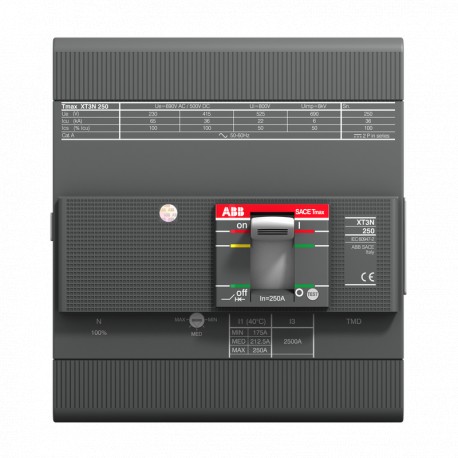

1SDA068260R1 ABB XT3N250 TMG R100 Im400 4P F F
1SDA068260R1
068260
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Safeguarding electrical circuits from overcurrents and potential faults, the 1SDA068260R1 ABB XT3N250 TMG R100 Im400 4P F F molded case circuit breaker is a standard component in modern power distribution. Panel builders integrate these multi-pole breakers to provide dependable automatic disconnection when electrical anomalies occur. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2350
- Environmental Product Declaration - EPD: 9AKK108468A2294
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 56.6 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 8ff642bd-8529-489c-8ec6-fee5da8926d4 Italy
- Simplified SCIP: 37921df0-f0b7-4ad7-a705-3d82ba185b0f Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT3NE4100NFF000XXX
- E-Number (Norway): 4379839
- EAN: 8015644021665
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2350 |
| Environmental Product Declaration - EPD | 9AKK108468A2294 |
| 9AKK108468A7794 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 56.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 8ff642bd-8529-489c-8ec6-fee5da8926d4 Italy |
| Simplified SCIP | 37921df0-f0b7-4ad7-a705-3d82ba185b0f Germany |
| be82d1b0-b0d1-442b-a43a-60f36d9e62bb France | |
| 62286202-287e-49cf-95f5-4db1c0e049f2 Sweden | |
| 4f20ab42-f92e-4991-a6ff-c3b84149d0df Germany | |
| fcd90d28-4ab6-4c1b-803c-06af9d2f1a8d Germany | |
| 7a69fa5f-fbf8-43cd-a3ca-6a0c617a9070 France | |
| a16b7dcb-ccf4-4d5d-bd0c-b2431ae24c04 Netherlands | |
| e6bf3b9a-a8f2-4501-b5e0-48ca94f98e84 Spain | |
| 2d0f9820-ab22-45cb-a5e2-8c30d2e498c6 Netherlands | |
| 02b073ca-c409-43c5-b655-cadf6b32563a Poland | |
| 47c33c19-7466-480b-9ad8-b7fdea71390f Norway | |
| c00e9d99-7100-4b7f-8937-b7fc005f7822 Finland | |
| 5227fd0c-5a76-4145-a825-0ff342f0e34e Netherlands | |
| a5ce1512-f377-40ee-ba59-3d5bd63ac0d4 Germany | |
| e42020f9-fe9f-43a7-bb97-bdaa5b807a27 Denmark | |
| 682a8870-e09d-4f39-9856-786cf749b6bf Germany | |
| c7a95cd3-74bb-47bd-b6e8-8168ba06f665 Croatia | |
| 8e0a6859-2b8c-473a-861e-c8f49cb8dc62 Czech Republic | |
| e3d8582d-e7ad-4613-b9d3-0fe69ce469e9 Poland | |
| db774134-3511-44b5-bcc4-1dac9fcbe0a7 Netherlands | |
| 831ee942-e7ed-410e-a8cf-00c61008850a Netherlands | |
| 309771e4-93c9-4d48-8189-549d22ff9662 Estonia | |
| 947466eb-8b98-473e-a993-102a0ef03c40 Greece | |
| 39202de0-25c9-4c7c-868c-d5fa4e758097 Portugal | |
| 94a4cf40-7fb9-49fc-96a0-9870cd45bba7 Bulgaria | |
| 8b7b8624-36a4-4400-963e-7f1b2c6a8dbb Sweden | |
| 89adf6a7-a3c4-4912-8eed-febaf0268774 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT3NE4100NFF000XXX |
| E-Number (Norway) | 4379839 |
| EAN | 8015644021665 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 2.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 155 mm |
| Package Level 1 Height | 190 mm |
| Package Level 1 Depth / Length | 155 mm |
| Package Level 1 Gross Weight | 2.1 kg |
| Package Level 1 EAN | 8015644021665 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Generator Protection |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0483 |
| Technical | |
| Connecting Capacity Main Circuit | Busbar 85..192 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 5.6 W |
| Rated Current (In) | 100 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 400 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (240 V AC) 50 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 18 kA | |
| (500 V AC) 15 kA | |
| (525 V AC) 9,75 kA | |
| (690 V AC) 3,75 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (240 V AC) 50 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 20 kA | |
| (525 V AC) 13 kA | |
| (690 V AC) 5 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M8 |
| Release | TMG |
| Release Type | TM |
| Setting Range | 70...100 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT3 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 8 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5530 |
| GL Certificate | 1SDL000163R0094 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000720R0100 |
| Mechanical Drawings | 1SDH000720R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000720R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
