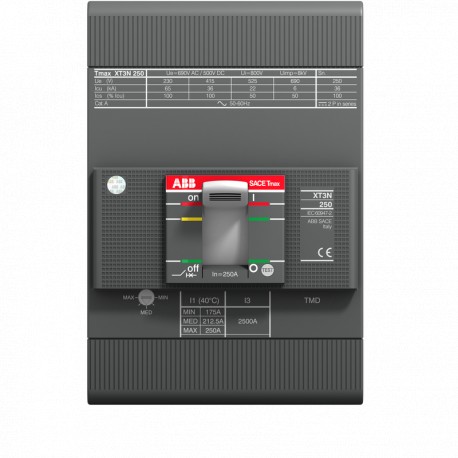

ABB 1SDA068251R1 1SDA068251R1 ABB XT3N250 TMG R63 Im400 3P F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068251R1 ABB XT3N250 TMG R63 Im400 3P F F

1SDA068251R1

068251

ABB

1 Pcs.

XT3N250 TMG R63 Im400 3P F F XT3N 250 TMG 63-400 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 56.6 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2350
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108468A2294
9AKK108468A7794
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP24951ad7-27d8-4771-a8c2-41b3219f2b37 Italy (IT)
Simplified SCIP8a9ad5b3-fa8d-4703-975e-24966f058489 Germany (DE)
828c88e7-8d7f-4428-885e-e9a902c39d32 France (FR)
24cf8b5f-0cd8-4d53-9347-af83a07e9edb Sweden (SE)
07d6ee4b-8ecd-477c-b497-c290479c3719 Poland (PL)
a8ca4e5b-4b29-44f3-96b7-7ff55e0620e2 Germany (DE)
facb6840-e1a7-459e-8f13-d0fefa7f86bf Germany (DE)
2703ada4-ae21-4a7d-82be-bc101f7f6c87 France (FR)
a89abad0-b89b-4eac-9b1d-d435fa303054 Netherlands (NL)
40cf049c-ef2f-4661-864b-78869ffaa59d Spain (ES)
c051d349-c9ae-4c73-a2e2-c4df589c12ea Netherlands (NL)
67dfb040-0845-48bd-a4ce-ac591de79340 Poland (PL)
1edeaffe-97b7-451f-835d-ee76fb145e76 Norway (NO)
6b82a632-4cc5-4109-b459-b17d0158909f Finland (FI)
106573e2-6a3a-459c-b042-b773c7469cdf Netherlands (NL)
773ff30c-0c95-46a7-ac45-417927b06bef Germany (DE)
f2f5e060-8d3d-4775-8068-06b7244d1e85 Denmark (DK)
53833378-95e0-46c9-a838-da4c0c4e21cd Germany (DE)
281b0e2b-294a-4e4f-bbae-b47ebd1bbea9 Croatia (HR)
9c8a3586-3d68-49cd-816b-02a6e69e9cb7 Czech Republic (CZ)
824a1011-83a6-494b-aea8-ac101128237f Poland (PL)
3cf0f8c7-7470-474c-afd5-6434589ea057 Netherlands (NL)
1735e416-9ece-458b-a929-672e9d987ec2 Netherlands (NL)
9ff9b267-9070-4d95-bd06-f5ea00b58491 Estonia (EE)
0017cd3f-dfa0-405c-866b-c952523335d6 Greece (GR)
26dd1114-9eef-431d-889c-e0b1850267fa Portugal (PT)
c2ae52d8-cc01-4268-baee-0de0ce73e4ab Bulgaria (BG)
9a02c457-650a-4085-a889-c0b022cbcf33 Sweden (SE)
Ordering
Order Code US and CanadaXT3NE3063NFF000XXX
EAN8015644021573
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width105 mm
Product Net Height150 mm
Product Net Depth / Length70 mm
Product Net Weight1.7 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width155 mm
Package Level 1 Height190 mm
Package Level 1 Depth / Length155 mm
Package Level 1 Gross Weight1.7 kg
Package Level 1 EAN8015644021573
Additional Information
Circuit Breaker Type to be AssociatedGenerator Protection
Connecting Capacity Main CircuitBusbar 85..192 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles3
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 4.3 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)63 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)400 A
Rated Insulation Voltage (Ui)800 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 27 kA
(415 V AC) 36 kA
(440 V AC) 19 kA
(500 V AC) 15 kA
(525 V AC) 9.75 kA
(690 V AC) 3.75 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 20 kA
(525 V AC) 13 kA
(690 V AC) 5 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu)250 A
Recommended Screw DriverMain Circuit M8
ReleaseTMG
Release TypeTM
Setting Range44.1...63 A
Short-Circuit Performance LevelN
StandardsIEC60947-2
Sub-typeXT3
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque8 N·m
VersionF
CAD Dimensional Drawing1SDH001295R0409
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5530
GL Certificate1SDL000163R0094
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000720R0100
Mechanical Drawings1SDH000720R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000720R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
