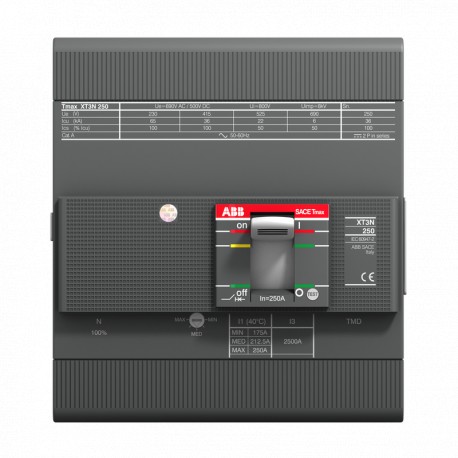

ABB 1SDA068227R1 1SDA068227R1 ABB XT3S250 TMD R200 Im2000 4P F F N50% View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068227R1 ABB XT3S250 TMD R200 Im2000 4P F F N50%

1SDA068227R1

068227

ABB

1 Pcs.

XT3S250 TMD R200 Im2000 4P F F N50% XT3S 250 TMD 200-2000 4p F F InN=50%

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 56.6 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2350
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108468A2294
9AKK108468A7794
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPee78645b-9190-4132-9b47-425b6adbcee3 Italy (IT)
Simplified SCIP335581ea-b1d4-46c4-b137-edcd09654911 Germany (DE)
8ed61b94-afc0-4df6-9fc3-3632a32c338b France (FR)
60322c62-14f2-401f-9527-ec327ca54298 Sweden (SE)
50ba27c1-2eb8-4856-9e39-156aae629e84 Germany (DE)
53699a45-479d-4927-aa87-3a02f932f35e Germany (DE)
c553a183-147d-4baa-aa9d-1bd2dffc3189 France (FR)
caaf58d4-0535-49ac-a849-b9e40d942bd8 Netherlands (NL)
a7deeced-1972-481c-86e0-8f8ccebd4d5f Spain (ES)
79bd78d6-20ed-46fd-bf77-da0930be5922 Netherlands (NL)
7655bdc0-e2c6-4c60-8537-bedc25d8bcfa Poland (PL)
d99f413a-e778-4f16-84b9-59e2d92aab39 Norway (NO)
d875e4e4-7fda-4609-84f0-ce3f9dd3a0a0 Finland (FI)
64b1f3e7-0efe-4f44-9229-0e267053ab1d Netherlands (NL)
efc81110-5a87-4b5a-ab5d-890ca662f614 Germany (DE)
5eadf070-7db7-4591-ab9b-868eaeeae967 Denmark (DK)
4765d670-3912-4d2a-9fdb-05e5d081eeed Germany (DE)
1ad8269d-760f-40de-b585-65616df53bc4 Croatia (HR)
ad733f13-f6aa-490a-94de-2ea9afb9d6fe Czech Republic (CZ)
daa223fe-7890-4581-8ee7-a9813c00ea65 Poland (PL)
8a49cab1-1572-496e-862a-60cb30b209ff Netherlands (NL)
c9082f34-bc4d-44bc-9b74-1a67f2e60d65 Netherlands (NL)
7b8166c7-1c2b-471b-ab74-387c891a32c8 Estonia (EE)
c3f62346-cdc6-4509-bf51-cfab39c1a059 Greece (GR)
256ac75e-9be1-465e-870a-f1616047e091 Portugal (PT)
0ef1a7bf-2a06-464d-bc38-f1736e5ece85 Bulgaria (BG)
1d052bef-6f54-4585-a618-1e22e0afb83f Sweden (SE)
aaabff35-a4b8-4fba-b0d6-2b2915ca04a9 Poland (PL)
Ordering
Order Code US and CanadaXT3SEN200AFF000XXX
E-Number (Finland)3641026
EAN8015644021337
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height150 mm
Product Net Depth / Length70 mm
Product Net Weight2.1 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width155 mm
Package Level 1 Height190 mm
Package Level 1 Depth / Length155 mm
Package Level 1 Gross Weight2.1 kg
Package Level 1 EAN8015644021337
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 85..192 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 13.2 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)200 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)2000 A
Rated Insulation Voltage (Ui)800 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 27 kA
(415 V AC) 36 kA
(440 V AC) 20 kA
(500 V AC) 15 kA
(525 V AC) 10 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 27 kA
(500 V DC) 3 Poles in Series 37.5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 6 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu)250 A
Recommended Screw DriverMain Circuit M8
ReleaseTMD
Release TypeTM
Setting Range140...200 A
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT3
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque8 N·m
VersionF
CAD Dimensional Drawing1SDH001295R0483
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5530
GL Certificate1SDL000163R0094
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000720R0100
Mechanical Drawings1SDH000720R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000720R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
