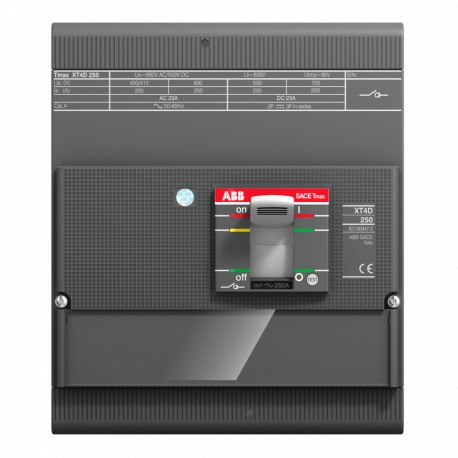

1SDA068213R1 ABB XT4D250 4P F F
1SDA068213R1
068213
ABB
1 Pcs.
XT4D250 4P F F
XT4D 250 4p F F
Connectors > Switch disconnector
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2351 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| 9AKK108468A1892 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f8edeb2d-ea0d-4278-a91d-460c0811753c Italy (IT) |
| Simplified SCIP | feb93c67-cc6b-48f2-b2cb-0765226a65f2 Germany (DE) |
| c8ad956d-82a8-41e5-a55a-66d4751d12e0 Sweden (SE) | |
| 9abe2f1f-4ec4-4e40-bffe-5d724a630689 Poland (PL) | |
| 9db63ea0-0efc-44ac-9925-ac6675088923 France (FR) | |
| 48902678-b226-4a21-a5f4-8f8b8a699f12 Sweden (SE) | |
| 30129b33-2efe-43f9-b82e-9f690e0d5c3e Germany (DE) | |
| 3d9c8853-75c2-44bd-b99e-6c512ddbc7a0 Germany (DE) | |
| e4dc520a-dc92-4ca2-8e00-cc97249fe3f6 France (FR) | |
| 99dd3628-6c68-440d-89c0-17b7bb7b3aab Netherlands (NL) | |
| 895974a2-e067-4455-a677-7750c486c580 Spain (ES) | |
| d98af576-f48f-45db-a4c9-8d18c3256907 Netherlands (NL) | |
| 70313bc8-3301-4fc7-b617-c7c4d8b454c7 Poland (PL) | |
| 27482aff-1ca6-4e56-ab7f-ceb60d46e241 Norway (NO) | |
| e652a2bc-c945-4592-a0b3-e12eb4c00f34 Finland (FI) | |
| 33012c14-e6ab-4fa1-b4f0-ac6843ec4515 Netherlands (NL) | |
| c28e53b6-b0b7-4376-ac13-fd85e42201a8 Germany (DE) | |
| f536679e-cfff-4cee-97ac-485d669a6460 Denmark (DK) | |
| 0b7144f3-6fcc-4899-9472-ad28d80b8bd8 Germany (DE) | |
| b2c1e8e2-03c5-4f1e-947e-fe69c56a8650 Croatia (HR) | |
| 37296b04-b4d5-4a64-8f25-060756d05b0a Czech Republic (CZ) | |
| 707bc0dd-17aa-412f-91d0-04c37a3cc52a Poland (PL) | |
| 911f37b5-e0b9-4f21-abf2-21f1be783c0d Netherlands (NL) | |
| 33461ebf-2168-4341-8f0f-8d2f51f46906 Netherlands (NL) | |
| fcdd22f6-3469-4a01-87cf-275d4fba36f5 Estonia (EE) | |
| 661c7678-40ff-4fba-b7e5-67fea5bb3761 Greece (GR) | |
| 83c0d2d9-a806-4513-98c3-ed7b2b8a6bd3 Portugal (PT) | |
| a7056dc4-e193-49b2-8fa6-9cc96beb4192 Bulgaria (BG) | |
| Ordering | |
| Order Code US and Canada | XT4DE4250DFF000XXX |
| EAN | 8015644021092 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 160 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.35 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 151 mm |
| Package Level 1 Height | 214 mm |
| Package Level 1 Depth / Length | 171 mm |
| Package Level 1 Gross Weight | 2.6 kg |
| Package Level 1 EAN | 8015644021092 |
| Additional Information | |
| Connecting Capacity Main Circuit | Busbar 85..200 mm² |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 16.4 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V AC |
| 500 V DC | |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 3.6 kA |
| Rated Uninterrupted Current (Iu) | 250 A |
| Recommended Screw Driver | Main Circuit M8 |
| Short-Circuit Performance Level | D |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 8 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0677 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000722R0100 |
| Mechanical Drawings | 1SDH000722R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000722R0001 |
| Classifications | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
