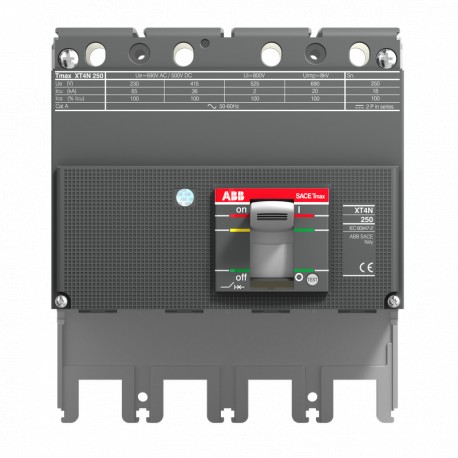

1SDA068180R1 ABB XT4H250 PART 4P F F INTERRUPTION
1SDA068180R1
068180
ABB
1 Pcs.
XT4H250 PART 4P F F INTERRUPTION
XT4H 250 BREAKING PART 4p F F
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB circuit breaker provides reliable fault isolation and circuit protection within industrial control panels and distribution boards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2351
- Environmental Product Declaration - EPD: 9AKK108469A1857
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 56.30 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 5c319188-d820-4a28-b655-b0e0e52761fa Italy
- Simplified SCIP: e0d4b978-37a5-41a6-8493-21116cb519e2 Poland
- Environmental Information: 9AKK108467A6707
- E-Number (Finland): 3641100
- E-Number (Norway): 4380186
- EAN: 8015644696214
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2351 |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| 9AKK108468A1892 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 5c319188-d820-4a28-b655-b0e0e52761fa Italy |
| Simplified SCIP | e0d4b978-37a5-41a6-8493-21116cb519e2 Poland |
| 87797410-38e8-4ddc-ae85-8bc564debae2 Poland | |
| 543000b5-bd6b-4c86-b239-e55153f94863 Germany | |
| 9b64b075-4725-4afe-a904-45488f6f1994 Germany | |
| f8902870-7774-4283-a477-8bda24c0bc3b Croatia | |
| d4575fd8-5fdd-4170-b906-02a4b67380a0 France | |
| d2b46837-8c39-4728-80ef-4faaec59fbc7 Czech Republic | |
| 5d8e3587-a97a-471a-a739-1923ab9c2813 Germany | |
| a6954f45-272a-4fae-b8a7-30994cdcb1b7 Poland | |
| cfe29310-453b-4943-9a89-96782a437988 Estonia | |
| bf4f99f2-dbe7-4181-b180-b4dd05ed5516 Spain | |
| 572a8491-9fd9-46ae-be9b-6f945967441e Belgium | |
| 99ac7ac7-456c-42dc-837f-0da71110f4e7 Hungary | |
| ddc02244-cee1-4de5-99bb-c02296d00ed0 Sweden | |
| 6a4f5172-0d4c-4401-b850-bf4868705e06 Denmark | |
| d7ecf7ce-663e-467a-9cb1-0ab5d938e695 Belgium | |
| bc93d0af-91d7-4ec2-bdea-01c10783aac4 Finland | |
| b21dfee4-674b-4ed3-be6a-9dbf79eae0cb Hungary | |
| a8ddbc3c-4f3c-4e77-9d9c-6330b8c9338c France | |
| 26cfe2a1-c8f5-42dd-8494-f27f34f0337f Portugal | |
| 4bbb1225-e798-447d-9594-1b0dcc52524d Germany | |
| af5b7f90-0d8d-4f7e-b043-ff0c9f595aec Greece | |
| 50ef131d-9597-4293-9062-f996953ffb35 Germany | |
| 3a441056-8f9e-40df-b985-faeec4b7c469 Norway | |
| bdfa113d-eb57-4e67-9de2-c294690516db Sweden | |
| a253434b-0e3d-4170-9b71-c49e007da0c8 Netherlands | |
| e7b89896-f1f4-4a84-8d23-39907a0c2d70 Bulgaria | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641100 |
| E-Number (Norway) | 4380186 |
| EAN | 8015644696214 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 160 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.65 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 171 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Depth / Length | 151 mm |
| Package Level 1 Gross Weight | 3.1 kg |
| Package Level 1 EAN | 8015644696214 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 15 kA | |
| (250 V DC) 2 Poles in Series 70 kA | |
| (500 V DC) 2 Poles in Series 70 kA | |
| (500 V DC) 3 Poles in Series 70 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 15 kA | |
| (250 V DC) 2 Poles in Series 70 kA | |
| (500 V DC) 2 Poles in Series 70 kA | |
| (500 V DC) 3 Poles in Series 70 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Rated Voltage (Ur) | 690 V |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| GL Certificate | 1SDL000163R0095 |
| LR Certificate | 1SDL000163R0100 |
| Instructions and Manuals | 1SDH000722R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
