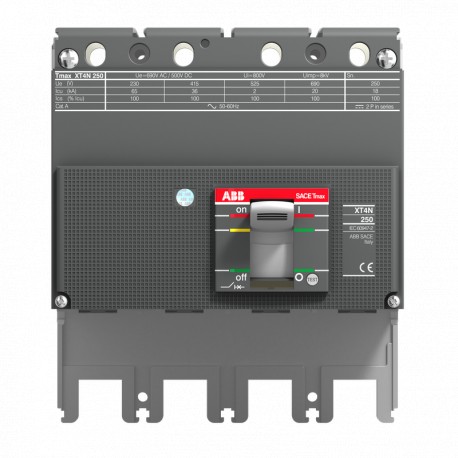

1SDA068179R1 ABB XT4S250 PART OF 4P F INTERRUPTION
1SDA068179R1
068179
ABB
1 Pcs.
XT4S250 PART OF 4P F INTERRUPTION
XT4S 250 BREAKING PART 4p F F
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A circuit breaker component part ensures the secure assembly and mechanical integrity of modular electrical protection configurations in commercial distribution setups. It maintains proper spacing and electrical clearance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2351
- Environmental Product Declaration - EPD: 9AKK108469A1857
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 56.30 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: c450a3df-5ce5-4597-94e9-53a9e6a84bd7 Italy
- Simplified SCIP: 257bd314-7a59-4e51-ac6a-cb4464ada487 Bulgaria
- Environmental Information: 9AKK108467A6707
- E-Number (Finland): 3641076
- E-Number (Norway): 4380185
- EAN: 8015644020767
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2351 |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| 9AKK108468A1892 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c450a3df-5ce5-4597-94e9-53a9e6a84bd7 Italy |
| Simplified SCIP | 257bd314-7a59-4e51-ac6a-cb4464ada487 Bulgaria |
| f93d8e90-2e1f-4e02-8aaa-cfb82b750fd2 Netherlands | |
| db8fced5-c40b-4b87-a921-f2da84388f65 Norway | |
| f5b47456-ea3e-45cc-b94d-6a86e8d8ccc3 Sweden | |
| 89433a7e-fcd2-4cc0-b3c3-7cdee1b304a9 Germany | |
| e4fd21ae-7ecd-4145-92aa-72bba750c4b8 France | |
| a1459492-97f4-4be4-90e5-7df74da8d0dc Greece | |
| dd9be6c4-6063-4c81-a65f-cf03eaa4eb9f Belgium | |
| 1e32c8dd-3bf1-4e50-8104-b98ba38f10a3 Hungary | |
| 48baed2e-9f4b-4baa-be0a-2b6e0c73b39c Finland | |
| be5717d2-0ca9-443a-b18e-0524dd6f3851 Poland | |
| d36b8fb2-3dfb-4fed-a5d0-9522bfe625d9 Estonia | |
| 1d04ff7e-92fb-49a3-92eb-93fc9fb74258 Germany | |
| d83af3b5-b83e-4f56-ad91-b201136be220 Croatia | |
| e2ab3936-4675-47ac-bb27-b307a4e2b19e Poland | |
| 10041f1b-1b3e-42d6-acc9-810e4663f10c Poland | |
| dba81a66-e026-46e4-9dac-fa5fc13537d3 Hungary | |
| 6a0f5c9b-fff0-4d6d-ae95-ebfb553619cc Belgium | |
| 275f6df1-bcf2-484b-9ad3-d5fa1b5327f7 Spain | |
| e06e0a85-5bf0-4494-84aa-85333c8f75ab Germany | |
| 765629b1-41d8-4e87-9c67-6e364683ef26 Czech Republic | |
| 253bf7c5-5daf-4bb4-9d28-1071a176bddf Germany | |
| 89bc9058-1d66-43f2-85dd-708631ed5991 France | |
| f3ea7f8b-caae-4846-ba4e-5a182d6eb2c4 Germany | |
| 62f4363f-5a83-4878-98af-5f752c9b8c8e Sweden | |
| 155df062-1c69-458b-8910-dd6d1c76ef29 Denmark | |
| c5ecd498-e0e9-48d9-a6b5-55fbc851db00 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641076 |
| E-Number (Norway) | 4380185 |
| EAN | 8015644020767 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 160 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.65 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 171 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Depth / Length | 151 mm |
| Package Level 1 Gross Weight | 3.1 kg |
| Package Level 1 EAN | 8015644020767 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Rated Voltage (Ur) | 690 V |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| GL Certificate | 1SDL000163R0095 |
| LR Certificate | 1SDL000163R0100 |
| Instructions and Manuals | 1SDH000722R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
