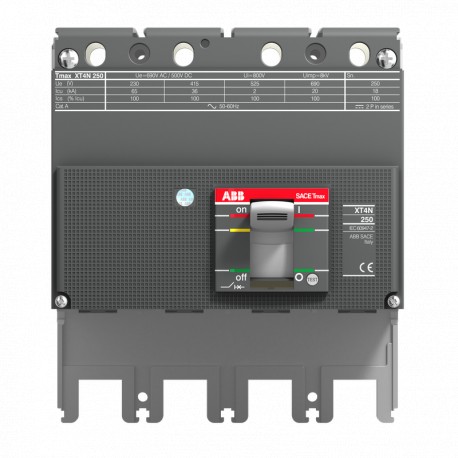

1SDA068178R1 ABB XT4N250 PART OF 4P FRUPTION
1SDA068178R1
068178
ABB
1 Pcs.
XT4N250 PART OF 4P FRUPTION
XT4N 250 BREAKING PART 4p F F
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A circuit breaker component is used to assemble or maintain multi-pole protective assemblies within industrial power distribution enclosures. This Abb 1SDA068178R1 part supports reliable interruption performance in electrical panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2351
- Environmental Product Declaration - EPD: 9AKK108469A1857
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 56.30 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 03e9bd14-b6d0-4186-9ab3-b2fb278970e2 Italy
- Simplified SCIP: fbb58a1d-39bf-4872-ad55-1de27f538e61 Germany
- Environmental Information: 9AKK108467A6707
- E-Number (Finland): 3641070
- E-Number (Norway): 4380184
- EAN: 8015644020750
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2351 |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| 9AKK108468A1892 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 03e9bd14-b6d0-4186-9ab3-b2fb278970e2 Italy |
| Simplified SCIP | fbb58a1d-39bf-4872-ad55-1de27f538e61 Germany |
| 8a9216c8-aa95-4981-9c57-c1df020e16dc France | |
| c34d76be-9923-40e0-b8f1-4464bfad69c7 Sweden | |
| 356495e3-67c8-4193-810f-f9428da025e5 Germany | |
| e3ff7380-6cc7-4d80-8929-221f36c19fa4 Germany | |
| f0ae7b2c-e011-4bc5-9aec-662c4685c026 France | |
| 63f093a3-ec35-47a7-892f-00b4a798e1f2 Netherlands | |
| f4d2b47f-28b7-4843-8fa5-05be4d645a55 Spain | |
| 645ea2d6-4db6-4d31-97e3-1e09856e1c16 Netherlands | |
| 08d702d7-4383-4d95-96a0-2a2afbbe14ed Poland | |
| 073603d7-1e38-4381-91a2-f52de966c0f1 Norway | |
| f8a81c18-c8da-4db5-8c41-cf071e7a42c5 Finland | |
| c2dfbdf2-0e11-4e77-9b02-0d9902468d53 Netherlands | |
| efed6ba7-7f9b-4673-9f5b-c7091a6ec656 Germany | |
| 8f75a2f1-e4f8-4997-99e5-690d6c6d477a Denmark | |
| 0ce26abb-cbe4-493d-9f4d-96d415a92a1f Germany | |
| d9d46828-4dc0-4c3d-be54-8b85444cb209 Croatia | |
| 6385a036-e5f6-4587-87e4-a8d2ffbdd15f Czech Republic | |
| a0ddc63b-e66e-4a39-b15f-d763343a94f2 Poland | |
| 1a20c1c7-f019-4624-93fe-d768d286c3d0 Netherlands | |
| 79f74b0d-b14b-4418-a3c7-4f0b1f64c995 Netherlands | |
| 3acac2fc-9b99-4a4a-9213-99c0872d821a Estonia | |
| cd6dd3b1-f2ba-442d-acca-06d88641549f Greece | |
| 10b970e2-ea75-4ac0-a94a-0961214075ad Portugal | |
| d07a8875-3198-473f-852b-db3e2ec7742c Bulgaria | |
| 3f844396-2752-4132-93ae-e51beba350a1 Sweden | |
| bfd7d743-3c9c-4943-ba72-cc5c34a7888b Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641070 |
| E-Number (Norway) | 4380184 |
| EAN | 8015644020750 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 160 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.65 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 171 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Depth / Length | 151 mm |
| Package Level 1 Gross Weight | 3.1 kg |
| Package Level 1 EAN | 8015644020750 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Rated Voltage (Ur) | 690 V |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| GL Certificate | 1SDL000163R0095 |
| LR Certificate | 1SDL000163R0100 |
| Instructions and Manuals | 1SDH000722R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
