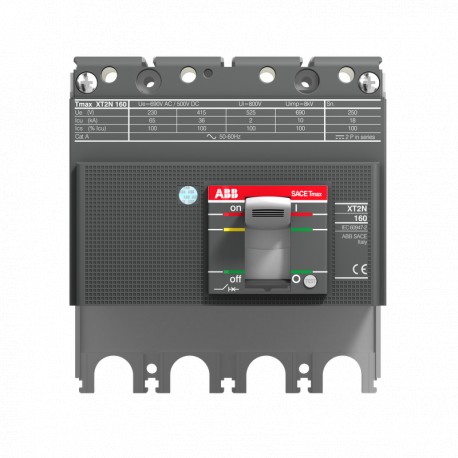

ABB 1SDA068170R1 1SDA068170R1 ABB XT2H160 PART OF 4P F F INTERRUPTION View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068170R1 ABB XT2H160 PART OF 4P F F INTERRUPTION

1SDA068170R1

068170

ABB

1 Pcs.

XT2H160 PART OF 4P F F INTERRUPTION XT2H 160 BREAKING PART 4p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2348
Environmental Product Declaration - EPD9AKK108469A1856
9AKK108468A1891
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 55.70 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP663e8bf8-ac39-45e2-bb3b-477786a0534a Italy
Simplified SCIP11db11de-5fe4-45c9-b5e1-9f0c228fac65 Germany
9672d8a0-cbab-4eea-b1fa-0a023db90dc1 France
1daaad42-b6d2-4f63-85fe-f0ba430cdfbe Sweden
882b6139-5abd-4752-b709-d722c2a7d2b1 Germany
dfb6fdb2-85f0-4fdb-8914-4f62acc0cbbc Germany
d96948a6-b3be-4d26-9f1f-21268276d34a France
530e06d4-768a-4329-a9f0-9d54befb7dd1 Netherlands
907efefb-2e63-4da6-a80d-87193b914a88 Spain
1b3f7be3-1197-4c36-bef4-b19b4a9e1199 Netherlands
f5ae6816-a17b-414b-83d8-ea6be56b0f48 Poland
883d3077-7100-4b9b-8a4b-ceef1e8d9006 Norway
8ab542da-9e9d-44ce-9387-737bb6954d04 Sweden
0ecfcaad-84c4-4d3a-8560-a33e692569db Poland
dbb16089-1024-4a39-bc5c-653a765b66a1 Finland
7ab595e7-a807-4417-9740-52f1a338d40f Netherlands
bfad18d1-cf60-4d82-8e92-11060ebc1db0 Germany
1c81d21a-a430-4295-813a-5d972026dcdd Denmark
9e7b6aea-846c-431d-b6d2-df49017ffcd7 Germany
99641427-b52a-4305-8555-ae54782cdf2f Croatia
e277dcf6-d6bb-4f3a-8358-e7553b09982f Czech Republic
8c0d26f3-1080-4b69-be9d-96ef1d4d5110 Poland
96a5c325-9bd4-41a4-8dd3-3fba1bb6fcf7 Netherlands
1acc923e-fb90-4570-9e48-2ad99899dee2 Netherlands
476c31ba-afe5-489d-af9f-9df3fceff712 Estonia
a81ba7ef-697e-40f5-a67f-236f7b95159c Greece
bf325f2d-324a-48c8-9f9e-d7c8af2edca6 Portugal
969daf7d-2111-46a2-b7b9-f96769350334 Bulgaria
Environmental
Environmental Information9AKK108467A6707
Ordering
E-Number (Finland)3640555
E-Number (Norway)4379740
EAN8015644020675
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width120 mm
Product Net Height130 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.2 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width150 mm
Package Level 1 Height215 mm
Package Level 1 Depth / Length135 mm
Package Level 1 Gross Weight1.3 kg
Package Level 1 EAN8015644020675
Additional Information
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeBreaking Part
VersionF
Technical
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4P
Opening TimeCB with SOR 30 ms
CB with UVR 30 ms
Order Multiple1 piece
Rated Frequency (f)50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 30 kA
(690 V AC) 15 kA
(250 V DC) 2 Poles in Series 70 kA
(500 V DC) 3 Poles in Series 70 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 30 kA
(690 V AC) 15 kA
(250 V DC) 2 Poles in Series 70 kA
(500 V DC) 3 Poles in Series 70 kA
Rated Uninterrupted Current (Iu)160 A
Rated Voltage (Ur)690 V
Short-Circuit Performance LevelH
StandardsIEC60947-2
Sub-typeXT2
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5901
GL Certificate1SDL000163R0093
LR Certificate1SDL000163R0100
Instructions and Manuals1SDH000721R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
