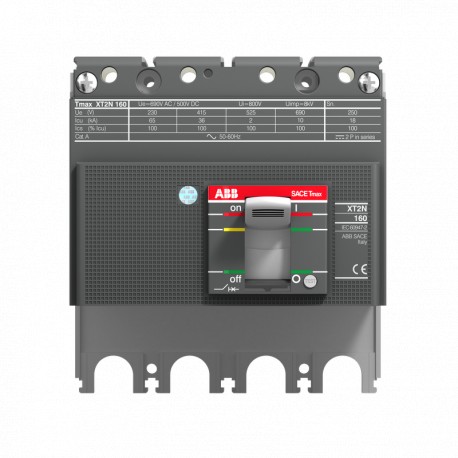

ABB 1SDA068169R1 1SDA068169R1 ABB XT2S160 PART OF 4P FRUPTION View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068169R1 ABB XT2S160 PART OF 4P FRUPTION

1SDA068169R1

068169

ABB

1 Pcs.

XT2S160 PART OF 4P FRUPTION XT2S 160 BREAKING PART 4p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2348
Environmental Product Declaration - EPD9AKK108469A1856
9AKK108468A1891
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 55.70 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPb0db87c8-b702-4b4c-ad2b-13e13fda7fa6 Italy
Simplified SCIPe80ae7f8-9c46-4f2b-ad2c-35bd2fcbc20d Germany
c24ea644-f98c-4065-867d-49188f619fad Germany
56139cad-3b20-44e3-822b-17c71bf47a6d Germany
cf075ee5-52a8-4402-a51f-42119b67c525 France
eeb55abd-149f-4fa8-971f-2f0b8bb7a3cc Sweden
2a38d8ce-6f6d-4910-8f69-898805c76de7 Poland
91657a13-6af4-46ee-b701-999712af0344 Netherlands
acc76a67-d01c-4a8f-9701-8dd1c0f854ad Spain
59aa20c6-5ff3-41bf-8772-42429a601853 Netherlands
be19b62d-b7a8-4f94-aaa8-0e673a3f5548 Poland
e94731f0-0d84-4310-a70d-7dcc62fcb221 Norway
d286803e-6888-4412-8a83-87e814a3ecca Finland
0378bdcd-5834-4902-bf0f-b3f545c52371 Netherlands
0f68ee26-9c96-41ec-ac07-9605635785f3 Germany
abbf313b-77f5-4b4b-8487-6d3d91693087 Denmark
cce34289-9885-4a59-9559-38090121c429 Germany
7df56226-ee32-4fd1-be82-2c57fed5c121 Croatia
48ca0d7a-e067-4e3b-b31c-d35aca7cc785 Czech Republic
be11f1d2-aad4-4f35-9a56-3e56e1b7bef0 Poland
be34899d-2f3f-4154-ac6b-45d8b8f975cd Netherlands
2c5284b3-6994-4c28-bb3b-491037d46d73 Netherlands
6db1b227-6217-469a-ab74-69676fd0144c Estonia
0ace0fbd-a631-4639-9f31-1551a5734a54 Greece
3f318fb6-978d-4a7b-8751-8af25cf9899f Portugal
9674dc28-18af-422b-9a69-605e0a25aa0f Bulgaria
1f73f27f-d7f7-4c67-a0cc-aa928e3f10f8 France
5585bf5a-aeac-4ee3-90b5-c865d6d5de37 Sweden
Environmental
Environmental Information9AKK108467A6707
Ordering
E-Number (Finland)3640589
E-Number (Norway)4379739
EAN8015644696160
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width120 mm
Product Net Height130 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.2 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width150 mm
Package Level 1 Height215 mm
Package Level 1 Depth / Length135 mm
Package Level 1 Gross Weight1.3 kg
Package Level 1 EAN8015644696160
Additional Information
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeBreaking Part
VersionF
Technical
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4P
Opening TimeCB with SOR 30 ms
CB with UVR 30 ms
Order Multiple1 piece
Rated Frequency (f)50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu)160 A
Rated Voltage (Ur)690 V
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT2
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5901
GL Certificate1SDL000163R0093
LR Certificate1SDL000163R0100
Instructions and Manuals1SDH000721R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
