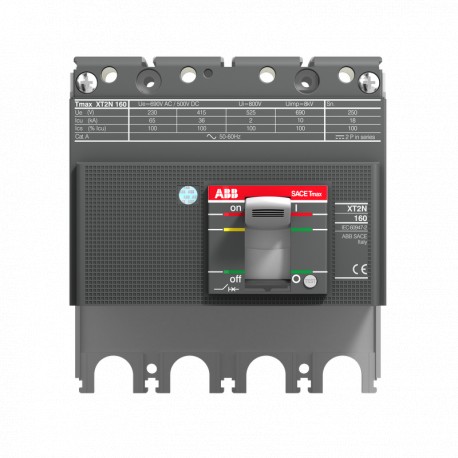

ABB 1SDA068168R1 1SDA068168R1 ABB XT2N160 PART OF 4P F INTERRUPTION View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068168R1 ABB XT2N160 PART OF 4P F INTERRUPTION

1SDA068168R1

068168

ABB

1 Pcs.

XT2N160 PART OF 4P F INTERRUPTION XT2N 160 BREAKING PART 4p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2348
Environmental Product Declaration - EPD9AKK108469A1856
9AKK108468A1891
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 55.70 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPabb54cbb-c3f9-4225-935d-2db788a80d85 Italy
Simplified SCIP6a664763-889c-46a4-8ed5-a1a857d4dc8c Germany
5c9fb46b-0a45-45cd-bc25-d03745cb1dcb Bulgaria
cb8cbf6f-2636-4092-946a-956c1f5165ca Sweden
bad24356-02f5-42bf-99b9-795c72583037 Poland
16ccc3f2-4afe-4685-8b94-15ecb7180d67 France
21a83cd5-249c-4d24-bd48-c0ed64a5eed1 Sweden
896065a9-4f85-4f77-b3d8-a432b4aa7ff5 Germany
e35360be-fdee-4b45-9036-9957280b2ad1 Germany
ae4b2d48-9c47-4742-ad08-9f07a8777aae France
c8d3d494-2209-412d-97e4-7f356078edc7 Netherlands
2c397cb4-5c71-4db2-b7d6-ba353735724f Spain
256a913b-1409-4d56-b27b-6d6dfff73414 Netherlands
cbc93482-e28c-4067-8877-5629394b5e62 Poland
4767c3ab-0e06-4841-83fd-dbf98929a47c Norway
683e10b8-b43f-47b7-94b0-c5cc2c22ec13 Finland
2b72199a-b47b-40d3-ad45-45903d8b595f Netherlands
cf89cc07-da61-416f-99e2-c68d5a32e936 Germany
4361471b-fe91-4291-93ea-c4a6f5810bc6 Denmark
1d6f0819-7f79-419f-80ae-dc3f7509c88a Germany
a8efddda-0b98-477b-9b2b-e8fd21968bd2 Croatia
11c3743f-784b-4680-9bbe-92ec01cf8202 Czech Republic
bfeeff8d-f810-4796-a404-73a76b28cec5 Poland
9e189d7e-fba5-42e2-ba30-37dbec851199 Netherlands
ef4e8654-9e88-4adc-af6e-a04444ffcb6b Netherlands
28a59e6e-55d5-4903-ab35-80fa1ee0261f Estonia
12e7647c-edd4-456b-a6b3-ffcd15b039f1 Greece
4db1be6e-d88d-4dda-b1e0-de4786320ff1 Portugal
Environmental
Environmental Information9AKK108467A6707
Ordering
E-Number (Finland)3640564
E-Number (Norway)4379738
EAN8015644020651
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width120 mm
Product Net Height130 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.2 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width150 mm
Package Level 1 Height215 mm
Package Level 1 Depth / Length135 mm
Package Level 1 Gross Weight1.3 kg
Package Level 1 EAN8015644020651
Additional Information
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeBreaking Part
VersionF
Technical
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4P
Opening TimeCB with SOR 30 ms
CB with UVR 30 ms
Order Multiple1 piece
Rated Frequency (f)50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
Rated Uninterrupted Current (Iu)160 A
Rated Voltage (Ur)690 V
Short-Circuit Performance LevelN
StandardsIEC60947-2
Sub-typeXT2
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5901
GL Certificate1SDL000163R0093
LR Certificate1SDL000163R0100
Instructions and Manuals1SDH000721R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
