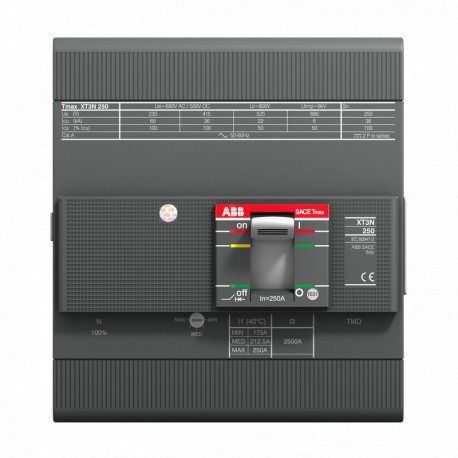

1SDA068068R1 ABB XT3N250 TMD R160 Im1600 4P F F
1SDA068068R1
068068
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A circuit-breaker, specifically the Abb 1SDA068068R1, is deployed in electrical panels to protect circuits and connected loads from the damaging effects of excessive current and short circuits. It reliably isolates faulty sections of a power distribution network to maintain operational safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 56.6 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2350
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108468A2294
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: e9843fe9-7d4b-4ff1-82b7-34f6ea409c25 Italy (IT)
- Simplified SCIP: 6e243e5b-a81a-48ab-b190-8c4e9d9dc1ac France (FR)
- Order Code US and Canada: XT3NE4160AFF000XXX
- E-Number (Sweden): 3182423
- EAN: 8015644019693
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 56.6 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2350 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108468A2294 |
| 9AKK108468A7794 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | e9843fe9-7d4b-4ff1-82b7-34f6ea409c25 Italy (IT) |
| Simplified SCIP | 6e243e5b-a81a-48ab-b190-8c4e9d9dc1ac France (FR) |
| e8de8e1b-d5fc-40bc-9e09-8ce639529c5e Belgium (BE) | |
| 162d19a2-e093-40be-a18e-6db97e9d8e48 Spain (ES) | |
| ee045469-a611-406b-b305-91ed9a992e3c Hungary (HU) | |
| 67b20f55-b3bc-4898-b331-4786df0dc320 Portugal (PT) | |
| 7395ed5d-aa33-4c5c-bf09-9920880e24ab Sweden (SE) | |
| 445e2deb-9cce-4592-9cab-f36d946d3020 Denmark (DK) | |
| 33827a46-58c0-46ee-b046-4bb830ca2cef Germany (DE) | |
| 044dc7f4-e805-4188-b17b-0de5216d3256 Croatia (HR) | |
| 1a5c1904-2893-4bde-ba05-646615c9ffd6 Germany (DE) | |
| f7e1485e-5b1e-40d9-8c47-754bc1a88b28 Germany (DE) | |
| 9439fd5a-3292-4167-b973-d5e1185c8b70 Czech Republic (CZ) | |
| 1b9b7d29-3c87-46e6-bbe5-8e606b9fc1c5 Germany (DE) | |
| 01599726-9475-47e4-9f1e-3fc5fa254232 Bulgaria (BG) | |
| b68d4646-2418-422d-a539-1bab8d2306ce Poland (PL) | |
| 09c2f2f4-5b23-44b1-81fb-6988b1143437 Poland (PL) | |
| e0b4d213-4cc4-4174-89f4-1a45291ea17c Belgium (BE) | |
| df6ee70c-1a1c-4244-9b1a-38cfbb39f819 France (FR) | |
| 98b8be5e-74c2-40ee-b4f1-1fcda1357f18 Germany (DE) | |
| 863fd0a2-1a0f-4978-a961-e2f0811af00e Greece (GR) | |
| 4419e8d4-9d4a-4098-a9cb-6e9f1f6412c4 Hungary (HU) | |
| d0cd4b8a-d058-46ce-9d6c-c3e0946206ee Poland (PL) | |
| 17ffd386-03f5-401d-b392-f6f150c771d9 Estonia (EE) | |
| 9f8d8728-8076-4baf-87e1-5ea6a60082dc Finland (FI) | |
| ad8de84b-69ac-40a4-bd01-6ab9f21b1302 Sweden (SE) | |
| 4f7c078b-ec45-4be4-b163-a9a07b76aea4 Netherlands (NL) | |
| 28be4e67-9b42-4461-a075-c0a4fc87573b Norway (NO) | |
| Ordering | |
| Order Code US and Canada | XT3NE4160AFF000XXX |
| E-Number (Sweden) | 3182423 |
| EAN | 8015644019693 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 2.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 155 mm |
| Package Level 1 Height | 190 mm |
| Package Level 1 Depth / Length | 155 mm |
| Package Level 1 Gross Weight | 2.1 kg |
| Package Level 1 EAN | 8015644019693 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Connecting Capacity Main Circuit | Busbar 85..192 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 7.9 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 160 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1600 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (240 V AC) 50 kA | |
| (380 V AC) 27 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 19 kA | |
| (500 V AC) 15 kA | |
| (525 V AC) 9.75 kA | |
| (690 V AC) 3.75 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (240 V AC) 50 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 20 kA | |
| (525 V AC) 13 kA | |
| (690 V AC) 5 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Recommended Screw Driver | Main Circuit M8 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 112...160 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT3 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 8 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0483 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5530 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000720R0100 |
| Mechanical Drawings | 1SDH000720R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000720R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
