> ABB > Molded Case Circuit Breakers ≤ 250 A Xtmax > 068067

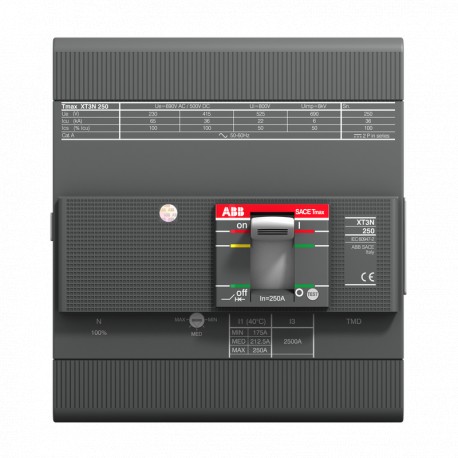

ABB 1SDA068067R1 1SDA068067R1 ABB XT3N250 TMD R125 Im1250 4P F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068067R1 ABB XT3N250 TMD R125 Im1250 4P F F

1SDA068067R1

068067

ABB

1 Pcs.

XT3N250 TMD R125 Im1250 4P F F XT3N 250 TMD 125-1250 4p F F InN=100%

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 56.6 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2350
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108468A2294
9AKK108468A7794
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPc8709ec6-c4d5-48d4-a4f1-73b0ad28ff28 Italy (IT)
Simplified SCIPc00ddc56-771e-4260-a104-77bce6b5ef40 Germany (DE)
e8418463-21bb-4646-9320-317496bc77c7 Germany (DE)
8b2aa564-3ff3-4d7b-9a63-8777af9d8171 Sweden (SE)
11aa80b9-b8f0-483b-b0e5-34e86b71601f Germany (DE)
589e2b91-34a5-43ca-a9ec-b300f715fe70 Croatia (HR)
6b1e6e20-3667-44ea-89cc-104f2b85cc99 Poland (PL)
25e3beb3-26da-46d0-a5a9-1e990bcd7391 Norway (NO)
1267c7bc-342b-4233-aee3-31fc6dd15d17 Finland (FI)
e39f64fb-f61b-42a5-bd0b-6cc09bac755c Netherlands (NL)
1def8801-a0df-4ecc-b285-1015470dc957 Germany (DE)
5153fd07-da34-4170-b9ad-78d1866b3bdb Netherlands (NL)
efb87256-30dd-4295-9547-b8154b1e7303 Czech Republic (CZ)
e5afe46d-afdc-46b1-ac91-c1c2e9720bdf Poland (PL)
5602b0a1-f2bd-4cc0-a7a5-b93548efcd46 Netherlands (NL)
499d83df-a2fa-4335-9a28-eaa392a0986f Estonia (EE)
45c1f002-9bef-4c95-8ec1-7cdbd583b762 Greece (GR)
e553b893-d96f-4839-b919-b8bf5e416ba4 Denmark (DK)
9db3e09e-7114-462a-9b18-bfe2839e19c0 Poland (PL)
2d906c04-e981-4fb1-848f-496a7922adab France (FR)
fddb75b5-f3bf-4a9d-93d5-2e298720f640 Germany (DE)
834f078c-1cc5-4c3c-9a7a-9368526db7d2 France (FR)
6ce50e92-801f-4ffc-be0c-fbf2f533352b Netherlands (NL)
750bb180-e74a-4243-8bc9-1cb55d571613 Spain (ES)
b585c2f4-04b8-4ba4-b860-02dec404a811 Netherlands (NL)
5c99b231-75ad-4ce9-be38-a2f334d46d99 Portugal (PT)
50d9662f-0e8c-4a77-b530-dd8df68e0856 Bulgaria (BG)
33fd8c79-e65f-4fe5-955b-4673557ad7e4 Sweden (SE)
Ordering
Order Code US and CanadaXT3NE4125AFF000XXX
EAN8015644019686
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height150 mm
Product Net Depth / Length70 mm
Product Net Weight2.1 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width155 mm
Package Level 1 Height190 mm
Package Level 1 Depth / Length155 mm
Package Level 1 Gross Weight2.1 kg
Package Level 1 EAN8015644019686
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 85..192 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 6.6 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)125 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)1250 A
Rated Insulation Voltage (Ui)800 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 27 kA
(415 V AC) 36 kA
(440 V AC) 19 kA
(500 V AC) 15 kA
(525 V AC) 9.75 kA
(690 V AC) 3.75 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 20 kA
(525 V AC) 13 kA
(690 V AC) 5 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu)250 A
Recommended Screw DriverMain Circuit M8
ReleaseTMD
Release TypeTM
Setting Range87.5...125 A
Short-Circuit Performance LevelN
StandardsIEC60947-2
Sub-typeXT3
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque8 N·m
VersionF
CAD Dimensional Drawing1SDH001295R0483
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5530
GL Certificate1SDL000163R0094
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000720R0100
Mechanical Drawings1SDH000720R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000720R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
