> ABB > Molded Case Circuit Breakers ≤ 250 A Xtmax > 068065

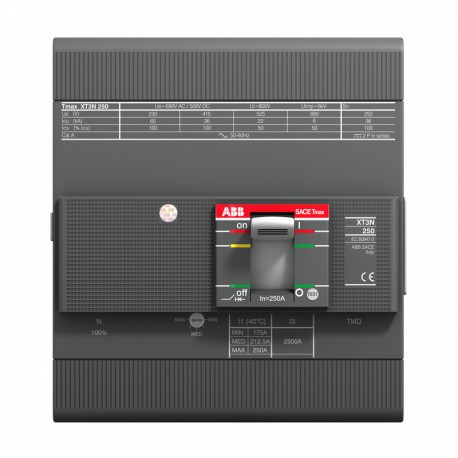

ABB 1SDA068065R1 1SDA068065R1 ABB XT3N250 TMD R200 Im2000 4P F F N50% View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068065R1 ABB XT3N250 TMD R200 Im2000 4P F F N50%

1SDA068065R1

068065

ABB

1 Pcs.

XT3N250 TMD R200 Im2000 4P F F N50% XT3N 250 TMD 200-2000 4p F F InN=50%

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 56.6 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2350
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108468A2294
9AKK108468A7794
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPbe2c41c1-4523-4ec9-828d-3e2b2f396b82 Italy (IT)
Simplified SCIP5e0acb54-16ae-4dee-bf3c-f796e4d0d3ab Germany (DE)
1676c911-88f0-4a8c-bd47-0a747abd4598 Germany (DE)
453d56dc-a9d8-4e8d-8048-fe0c83a9bef4 Sweden (SE)
8f533725-f7e0-4b97-8af6-03a7dbb9525b Denmark (DK)
05d8a992-78a0-445f-9c71-ba3e735defbf Germany (DE)
418b654d-19ed-473c-92e6-ae7a5c96e67f Poland (PL)
1bacdb23-32be-481f-9fb0-51d1abafd02f Norway (NO)
f4bc0fdd-7cf4-4b18-b1d4-6aa282b26524 Finland (FI)
50be7dd4-b6b5-4d28-9daf-93946fb6fe83 Netherlands (NL)
8f9c147d-beea-47d2-b19e-9454ac87e1fc Netherlands (NL)
1343062d-1dd9-4ec6-9cf2-5b6f789bbd71 Croatia (HR)
87a2c4d7-9e18-4907-9a35-5e3c41920aa3 Czech Republic (CZ)
0f3c840e-7b38-4a2c-bc1a-dcf92faca89e Poland (PL)
958f6566-89ad-4596-8f2f-dd42a4e4ec69 Netherlands (NL)
cbff7d62-32e9-4d5d-945b-9cfe6904870c Estonia (EE)
dbe664a8-e823-41fa-83c9-f036c3abc96a Greece (GR)
84aff4d0-f80a-42cd-b67d-4fade6509b6e Portugal (PT)
abfa6626-9d6f-43a6-b473-1aa8207f9e9b Bulgaria (BG)
d46dc8a0-8af8-4b2e-a751-a998d0c6294a Sweden (SE)
5f7b7b9b-45ee-464d-a1c5-34adad2705c4 Poland (PL)
f80e0704-492b-4039-b80c-8e10d32fb56a France (FR)
bc2fd9d1-d2b8-4ec9-810d-388d8d424a8a Germany (DE)
b7dbf387-4197-406a-9a3a-67abe0843eac Germany (DE)
4ec97c9a-bf49-48b4-a50f-455dfc771aac France (FR)
3fca4319-1f72-44fe-9a97-1300a9fdedbd Netherlands (NL)
ec4cf2c1-0076-49b1-bac7-3cc44aa8dc05 Spain (ES)
b677bd01-2a3d-42b0-a5d8-1d662b1c0db0 Netherlands (NL)
Ordering
Order Code US and CanadaXT3NEN200AFF000XXX
E-Number (Finland)3641012
EAN8015644019662
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height150 mm
Product Net Depth / Length70 mm
Product Net Weight2.1 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width155 mm
Package Level 1 Height190 mm
Package Level 1 Depth / Length155 mm
Package Level 1 Gross Weight2.21 kg
Package Level 1 EAN8015644019662
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 85..192 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 13.2 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)200 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)2000 A
Rated Insulation Voltage (Ui)800 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 27 kA
(415 V AC) 36 kA
(440 V AC) 19 kA
(500 V AC) 15 kA
(525 V AC) 9.75 kA
(690 V AC) 3.75 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 50 kA
(230 V AC) 50 kA
(240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 20 kA
(525 V AC) 13 kA
(690 V AC) 5 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu)250 A
Recommended Screw DriverMain Circuit M8
ReleaseTMD
Release TypeTM
Setting Range140...200 A
Short-Circuit Performance LevelN
StandardsIEC60947-2
Sub-typeXT3
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque8 N·m
VersionF
CAD Dimensional Drawing1SDH001295R0483
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5530
GL Certificate1SDL000163R0094
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000720R0100
Mechanical Drawings1SDH000720R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000720R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet
