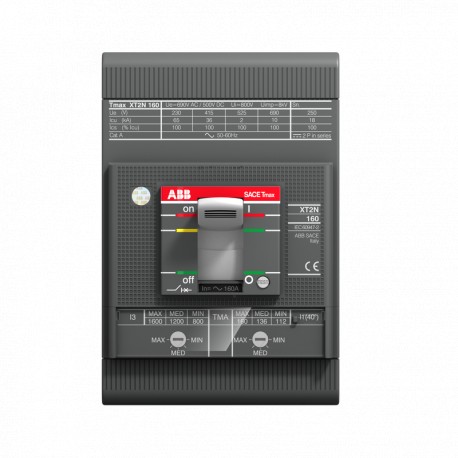

1SDA067773R1 ABB XT2H160 MF R8.5 Im120 3P F F
1SDA067773R1
067773
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SDA067773R1 circuit breaker acts as an automatic safety switch designed to prevent equipment damage by interrupting overcurrents and short circuits in industrial machinery networks. These components provide reliable thermal-magnetic or electronic protection within standard enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 55.70 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2348
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108469A1856
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: afdb0039-93cd-4f18-9e0c-6f67aee97d39 Italy (IT)
- Simplified SCIP: ea4f4598-773d-4638-92c4-0fb94ca2769a Germany (DE)
- Order Code US and Canada: XT2HE3009IFF000XXX
- EAN: 8015644016692
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2348 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108469A1856 |
| 9AKK108468A1891 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | afdb0039-93cd-4f18-9e0c-6f67aee97d39 Italy (IT) |
| Simplified SCIP | ea4f4598-773d-4638-92c4-0fb94ca2769a Germany (DE) |
| 9602d867-7222-46ac-967c-df9fbb8693fc Norway (NO) | |
| 54f7b842-e410-4b9e-9f72-f0ba991e5f4b Finland (FI) | |
| f276ab25-3001-4ae9-9c56-2443adfb77ae France (FR) | |
| eb474ee5-4211-4d32-baea-91c834bd697f Netherlands (NL) | |
| 95521afe-f3b5-4b29-8477-2e4529ee48b1 Spain (ES) | |
| 7c32f442-fbaa-4202-b600-61d7fc796c71 Netherlands (NL) | |
| c868e4b5-9316-4f07-814d-91223b342d79 Bulgaria (BG) | |
| 45a77212-9c9a-4ce8-ad63-d1a639aaae59 Sweden (SE) | |
| 474612a3-b7e1-40e1-a720-da1a198bacd2 Poland (PL) | |
| 59db77ac-618b-47ab-800a-02bfaf1da8ba France (FR) | |
| 93be2516-88c4-4fbc-ad12-b4e1e5209bf5 Sweden (SE) | |
| 1339624f-0675-4bf9-aadd-99b7e25f8389 Poland (PL) | |
| f9fb075c-b48f-45b3-bb78-7540efcfd883 Germany (DE) | |
| 487dd262-6556-41a6-ba31-276b763b4d8f Croatia (HR) | |
| 44525e92-a915-42dc-8a35-384fd4f8ffbf Czech Republic (CZ) | |
| 39c64dcc-5ae6-4338-9b27-034ad5e01ae3 Poland (PL) | |
| e4198f20-05d9-4826-b6c5-6eec9d66d8a5 Netherlands (NL) | |
| 5f136e26-8f32-4abc-a52d-f744ff770d6a Germany (DE) | |
| 9de4a76a-2c42-4abf-844c-da94cfc85d37 Germany (DE) | |
| 7d63820e-dceb-4623-93db-01d02ebadd00 Netherlands (NL) | |
| 17ce48d6-892e-4455-abff-cb5db1150e7c Germany (DE) | |
| 0c8c8f06-56ad-4f21-bdf3-a35a3acdf798 Denmark (DK) | |
| 5a1320ef-cfb2-4bce-983d-9674a23c8a0a Netherlands (NL) | |
| c9cae246-d439-4423-9b61-72651086d844 Estonia (EE) | |
| da071219-62cd-40e8-a5b6-c82a96dfc8f4 Greece (GR) | |
| 54573e89-9e20-40dd-b06e-f483c4a977c0 Portugal (PT) | |
| Ordering | |
| Order Code US and Canada | XT2HE3009IFF000XXX |
| EAN | 8015644016692 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 90 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 131 mm |
| Package Level 1 Height | 212 mm |
| Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Gross Weight | 1.2 kg |
| Package Level 1 EAN | 8015644016692 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 2.9 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 8.5 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 120 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 15 kA | |
| (250 V DC) 2 Poles in Series 70 kA | |
| (500 V DC) 3 Poles in Series 70 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 15 kA | |
| (250 V DC) 2 Poles in Series 70 kA | |
| (500 V DC) 3 Poles in Series 70 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Recommended Screw Driver | Main Circuit M6 |
| Release | MF |
| Release Type | M |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH002230A1001 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| GL Certificate | 1SDL000163R0093 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000721R0100 |
| Mechanical Drawings | 1SDH000721R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000721R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers |
| Object Classification Code | Q |
| UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
