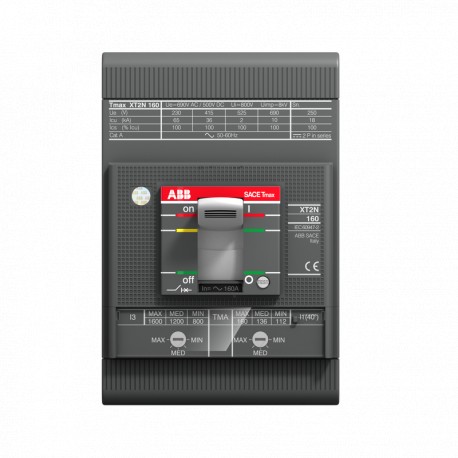

1SDA067761R1 ABB XT2S160 MF R2 Im28 3P F F
1SDA067761R1
067761
ABB
1 Pcs.
XT2S160 MF R2 Im28 3P F F
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB XT2S160 MF R2 Im28 3P F F circuit breaker provides reliable overload and short-circuit protection for motor and power distribution circuits in industrial control panels and automation infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2348
- Environmental Product Declaration - EPD: 9AKK108469A1856
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 55.70 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: c97eec5a-6330-492f-890d-c88c3cfe08ac Italy
- Simplified SCIP: 1e49da01-f3c5-4983-aa15-9aa794c837d5 Belgium
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT2SE3002IFF000XXX
- E-Number (Norway): 4379372
- EAN: 8015644016579
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2348 |
| Environmental Product Declaration - EPD | 9AKK108469A1856 |
| 9AKK108468A1891 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c97eec5a-6330-492f-890d-c88c3cfe08ac Italy |
| Simplified SCIP | 1e49da01-f3c5-4983-aa15-9aa794c837d5 Belgium |
| 20626767-1bfd-4126-8c8c-c62fa99ca160 Norway | |
| acb77c16-49e8-472f-8164-e111dec3a0dd Netherlands | |
| 9c4cefc3-237a-4da3-a263-5ae5bfda1be1 Estonia | |
| 61b7db0b-3de8-4370-89e1-483f70b111cb France | |
| 65c4428a-eb94-49b0-9683-3a7de8b33e78 Germany | |
| fc45a104-815a-4ae1-8019-17b27867ae59 Germany | |
| f6dd832e-82c3-4e73-b002-3192f96e5332 Hungary | |
| aea86e61-2b23-4e38-ab3b-b607b42dc355 Spain | |
| db8266e5-09b0-4731-b536-4b23533fb6ae Poland | |
| 9f133c37-7daf-4151-873b-d8776684787f Poland | |
| 629731d1-cb8e-4279-8d29-f4e16523b05a Hungary | |
| be88e0a1-8b42-499d-9a55-e45c55849887 Sweden | |
| ce7d9eb7-ae5f-4553-bd1f-ad06821be237 France | |
| 70ba5e2e-c50f-4ad6-8f85-5466bd559956 Sweden | |
| 276034ba-ab87-4e32-b138-45ccee222686 Germany | |
| 3b5445ff-f6f5-4650-8b26-910b8ed724c6 Denmark | |
| 40e97f7d-f18f-40c1-a242-cd361ef84c8d Germany | |
| aa147dfd-073d-45a9-8561-f9d74846a2e5 Croatia | |
| 7df9759b-e7b4-4bdf-9de2-8f67316a3878 Czech Republic | |
| 6d136e0a-a554-451b-a6b3-c91e3c703448 Portugal | |
| ecf7d17e-e467-4e53-8d24-98d8dbb4d6dc Bulgaria | |
| ce112051-4bcf-443f-b35d-ceeb2053a111 Greece | |
| e763b4bb-2ad5-4c10-9867-8c6b174ca575 Belgium | |
| 0f3f5717-e008-43b3-bf62-d0c5706f5ecf Finland | |
| 506109b6-a159-4d4e-b910-4b967e736bd1 Germany | |
| 42d686c9-1f81-415b-a02a-017a77175550 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT2SE3002IFF000XXX |
| E-Number (Norway) | 4379372 |
| EAN | 8015644016579 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 90 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 131 mm |
| Package Level 1 Height | 212 mm |
| Package Level 1 Depth / Length | 147 mm |
| Package Level 1 Gross Weight | 1.2 kg |
| Package Level 1 EAN | 8015644016579 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002230A1001 |
| Technical | |
| Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 2.38 W |
| Rated Current (In) | 2 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 28 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M6 |
| Release | MF |
| Release Type | M |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| GL Certificate | 1SDL000163R0093 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000721R0100 |
| Mechanical Drawings | 1SDH000721R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000721R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
