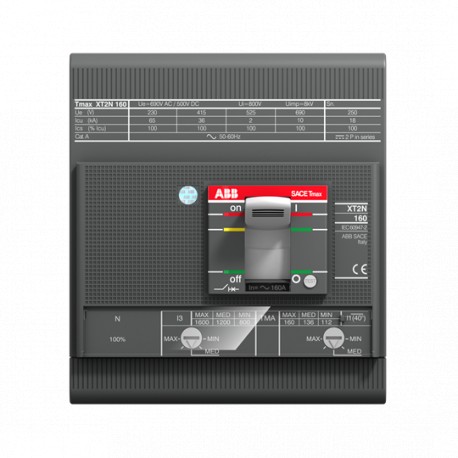

1SDA067655R1 ABB XT2L160 TMD R6.3 Im63 4P F F
1SDA067655R1
067655
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed as an automatic circuit breaker, this Abb 1SDA067655R1 unit provides reliable power distribution protection by quickly interrupting overcurrents and short circuits. It defends electrical systems against faults in commercial and industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Extended Product Type: XT2L 160 TMD 6,3-63 4p F F
- Product ID: 1SDA067655R1
- Catalog Description: XT2L 160 TMD 6,3-63 4p F F
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 58.1 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2348
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108468A1891
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Circuit Breaker Type to be Associated: Power Distribution
- Connecting Capacity Main Circuit: Busbar 32.5..100 mm²
More info
▲- Extended Product Type:
- XT2L 160 TMD 6,3-63 4p F F
- Product ID:
- 1SDA067655R1
- EAN:
- 8015644015510
- Catalog Description:
- XT2L 160 TMD 6,3-63 4p F F
- Long Description:
- C.BREAKER TMAX XT2L 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 6,3-63 A
ABB EcoSolutions
- ABB EcoSolutions:
- Yes
Circular Value
- Circular Design Principles Recyclability Rate:
- Design for Closing Resource Loops - Standard EN45555 - 58.1 %
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108467A5658
- End of Life Instructions:
- 9AKK108468A2348
- Group Waste to Landfill Target:
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA:
- 9AKK108467A8326
Eco Transparency
- Environmental Product Declaration - EPD:
- 9AKK108468A1891
Environmental
- Environmental Information:
- 9AKK108467A6707
- REACH Declaration:
- 9AKK108466A1425
- RoHS Information:
- 9AKK108466A1424
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Order Code US and Canada:
- XT2LE4006AFF000XXX
- EAN:
- 8015644015510
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362090
Dimensions
- Product Net Width:
- 120mm
- Product Net Height:
- 130mm
- Product Net Depth / Length:
- 82.5mm
- Product Net Weight:
- 1.45kg
Container Information
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Width:
- 131 mm
- Package Level 1 Height:
- 212 mm
- Package Level 1 Depth / Length:
- 147 mm
- Package Level 1 Gross Weight:
- 1.55 kg
- Package Level 1 EAN:
- 8015644015510
Additional Information
- Circuit Breaker Type to be Associated:
- Power Distribution
- Connecting Capacity Main Circuit:
- Busbar 32.5..100 mm²
- Current Type:
- AC/DC
- Electrical Durability:
- 120 cycles per hour
8000 cycle
- Mechanical Durability:
- 240 cycles per hour
25000 cycle
- Number of Poles:
- 4
- Opening Time:
- CB with SOR 15 ms
CB with UVR 15 ms
- Order Multiple:
- 1 piece
- Power Loss:
- at Rated Operating Conditions per Pole 3.33 W
- Product Main Type:
- SACE Tmax XT
- Product Name:
- Moulded Case Circuit Breaker
- Product Type:
- Automatic Circuit Breaker
- Rated Current (In):
- 6.3 A
- Rated Frequency (f):
- 50 / 60 Hz
- Rated Voltage (Ur):
- 690 V
- Rated Impulse Withstand Voltage (Uimp):
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii):
- 63 A
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- 690 V AC
500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (220 V AC) 150 kA
(230 V AC) 150 kA
(240 V AC) 150 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 60 kA
(525 V AC) 36 kA
(690 V AC) 15 kA
(250 V DC) 2 Poles in Series 85 kA
(500 V DC) 3 Poles in Series 85 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (220 V AC) 150 kA
(230 V AC) 150 kA
(240 V AC) 150 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 60 kA
(525 V AC) 36 kA
(690 V AC) 18 kA
(250 V DC) 2 Poles in Series 85 kA
(500 V DC) 3 Poles in Series 85 kA
- Rated Uninterrupted Current (Iu):
- 160 A
- Recommended Screw Driver:
- Main Circuit M6
- Release:
- TMD
- Release Type:
- TM
- Setting Range:
- 4.41...6.3 A
- Short-Circuit Performance Level:
- L
- Standards:
- IEC
- Sub-type:
- XT2
- Terminal Connection Type:
- Front
- Terminal Type:
- Bolt
- Tightening Torque:
- 6 N·m
- Version:
- F
- CAD Dimensional Drawing:
- 1SDH002230A1002
Certificates and Declarations
- ATEX Certificate:
- No certification needed
- Data Sheet, Technical Information:
- 1SDC210100D0206
1SDC210099D0206
- Declaration of Conformity - CE:
- 9AKK106713A5901
- GL Certificate:
- 1SDL000163R0093
- LR Certificate:
- 1SDL000163R0100
- UL Certificate:
- No certification needed
- VDE Certificate:
- No certification needed
- Dimension Diagram:
- 1SDH000721R0100
- Mechanical Drawings:
- 1SDH000721R0100
- Wiring Diagram:
- 1SDM000068R0001
- Instructions and Manuals:
- 1SDH000721R0001
Classifications
- ETIM 7:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- ETIM 8:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- ETIM 9:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code:
- Q
- UNSPSC:
- 39120000
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass:
- V11.1 : 27370409
