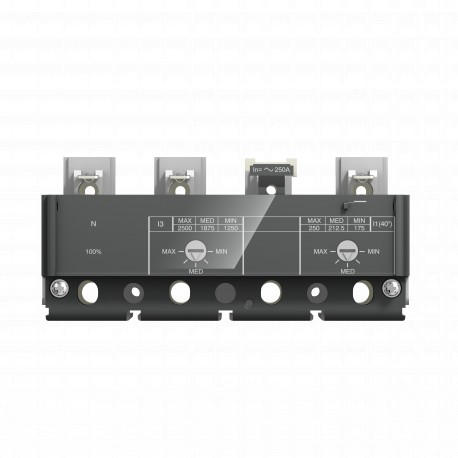

1SDA067478R1 ABB Rele Ekip TMA 200-2000 4P N50% XT4
1SDA067478R1
067478
ABB
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed to deliver reliable thermal-magnetic tripping capabilities, the 1SDA067478R1 ABB Rele Ekip TMA 200-2000 4P N50% XT4 unit protects electrical installations by disconnecting circuits during overload and short-circuit events. Such replacement trip units are commonly utilized in heavy industrial power distribution architectures to maintain system integrity and protect downstream equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- E-Number (Finland): 3641167
- EAN: 8015644695309
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 162 mm
- Package Level 1 Height: 92 mm
- Package Level 1 Depth / Length: 100 mm
More info
▲| Circular Value | |
|---|---|
| Environmental Information | 9AKK108467A6707 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Ordering | |
| E-Number (Finland) | 3641167 |
| EAN | 8015644695309 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 162 mm |
| Package Level 1 Height | 92 mm |
| Package Level 1 Depth / Length | 100 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 8015644695309 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Number of Poles | 4 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Rated Current (In) | 200 A |
| Release | TMA |
| Release Type | TM |
| Standards | IEC60947-2 |
| Suitable For | XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0505 |
| Classifications | |
| ETIM 8 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370418 |
