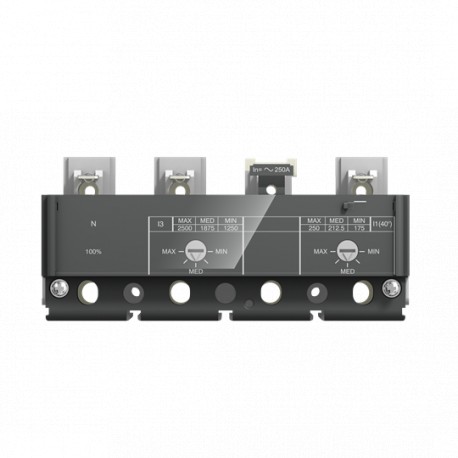

1SDA067475R1 ABB Ekip TMA 100-1000 4P Relay XT4
1SDA067475R1
067475
ABB
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB model 1SDA067475R1 is a thermal-magnetic release unit designed to protect electrical circuits against thermal overloads and sudden short-circuit currents. Trip units plug directly into compatible circuit breakers to deliver adjustable protection parameters. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Abb
- Manufacturer part number: 1SDA067475R1
- Catalogue code: 067475
- Catalogue title: 1SDA067475R1 ABB Ekip TMA 100-1000 4P Relay XT4
- Product description: b' General Information Extended Product Type: TMA 100-1000 XT4 4p Product ID: 1SDA067475R1 EAN: 8015644013677 Catalog Description: TMA 100-1000 XT4 4p Long Description: THERMOMAGNETIC RELEASE FOUR-POLE IN AC-DC TMA R 100
- Manufacturer summary: Ekip TMA 100-1000 4P Relay - XT4 THERMOMAGNETIC RELEASE FOUR-POLE IN AC-DC TMA R 100 I3=500...1000 A XT4
More info
▲b'
General Information
TMA 100-1000 XT4 4p
1SDA067475R1
8015644013677
TMA 100-1000 XT4 4p
THERMOMAGNETIC RELEASE FOUR-POLE IN AC-DC TMA R 100 I3=500...1000 A XT4
Ordering
8015644013677
1 piece
85389099
Dimensions
162 mm
92 mm
100 mm
1 kg
Container Information
1 piece
162 mm
92 mm
100 mm
1.1 kg
8015644013677
Additional Information
Power Distribution
Loose or configurable
AC/DC
4
1 piece
Accessories for Tmax XT
Accessory
ACC
100 A
TMA
Thermomagnetic
IEC
XT4
SACE Tmax XT
Certificates and Declarations (Document Number)
Classifications
EC001023 - Shunt release (for power circuit breaker)
EC001023 - Shunt release (for power circuit breaker)
Q
39120000
5. Small Equipment (No External Dimension More Than 50 cm)
