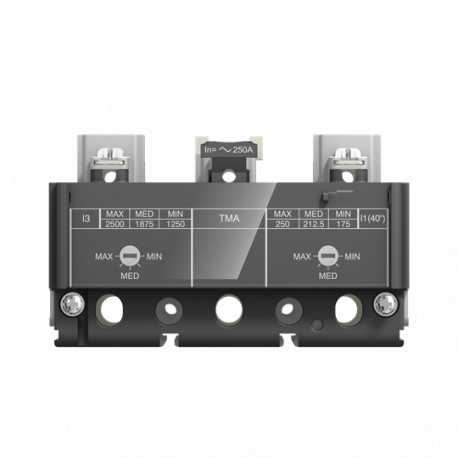

ABB 1SDA067387R1 1SDA067387R1 ABB Ekip TMA 160-1600 3P Relay XT4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA067387R1 ABB Ekip TMA 160-1600 3P Relay XT4

1SDA067387R1

067387

ABB

1 Pcs.

Ekip TMA 160-1600 3P Relay - XT4 THERMOMAGNETIC RELEASE THREE-POLE IN AC-DC TMA R 160 I3=800...1600 A XT4

Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
TMA 160-1600 XT4 3p
Product ID:
1SDA067387R1
EAN:
8015644012878
Catalog Description:
TMA 160-1600 XT4 3p
Long Description:
THERMOMAGNETIC RELEASE THREE-POLE IN AC-DC TMA R 160 I3=800...1600 A XT4
\n

Ordering

EAN:
8015644012878
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
162 mm
Product Net Height:
92 mm
Product Net Depth / Length:
100 mm
Product Net Weight:
1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
162 mm
Package Level 1 Height:
92 mm
Package Level 1 Depth / Length:
100 mm
Package Level 1 Gross Weight:
1.1 kg
Package Level 1 EAN:
8015644012878

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Configuration Type:
Loose or configurable
Current Type:
AC/DC
Number of Poles:
3
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Rated Current (In):
160 A
Release:
TMA
Release Type:
Thermomagnetic
Standards:
IEC
Suitable For:
XT4
Suitable for Product Class:
SACE Tmax XT

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210099D0205
Instructions and Manuals:\n1SDH000721R0505

Classifications

ETIM 6:
EC001023 - Shunt release (for power circuit breaker)
ETIM 7:
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
