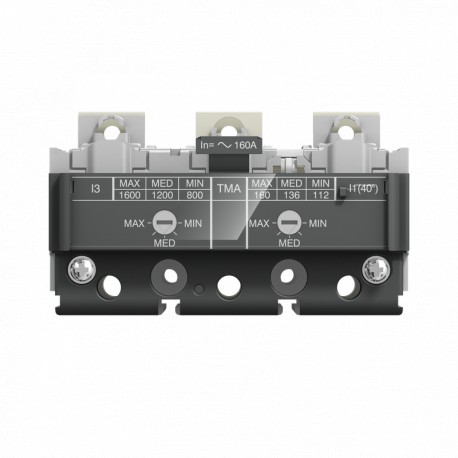

Images are for illustrative purposes only. Please refer to data sheet for details
1SDA067292R1 ABB Rele Ekip MA In52 Im314-728 3P XT2
1SDA067292R1
067292
ABB
1 Pcs.
Rele Ekip MA In52 Im314-728 3P - XT2
MA 52 Im=314...728 XT2 3p
Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Magnetic trip release type 1SDA067292R1 ABB Rele Ekip MA In52 Im314-728 3P XT2 provides dedicated short-circuit protection for motor protection circuit breakers in industrial drive applications.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- EAN: 8015644011925
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.8 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 145 mm
- Package Level 1 Height: 75 mm
- Package Level 1 Depth / Length: 95 mm
- Package Level 1 Gross Weight: 0.9 kg
- Package Level 1 EAN: 8015644011925
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| EAN | 8015644011925 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.8 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 145 mm |
| Package Level 1 Height | 75 mm |
| Package Level 1 Depth / Length | 95 mm |
| Package Level 1 Gross Weight | 0.9 kg |
| Package Level 1 EAN | 8015644011925 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Number of Poles | 3 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Rated Current (In) | 52 A |
| Release | MA |
| Release Type | M |
| Standards | IEC60947-2 |
| Suitable For | XT2 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0505 |
| Classifications | |
| ETIM 7 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 8 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370418 |
