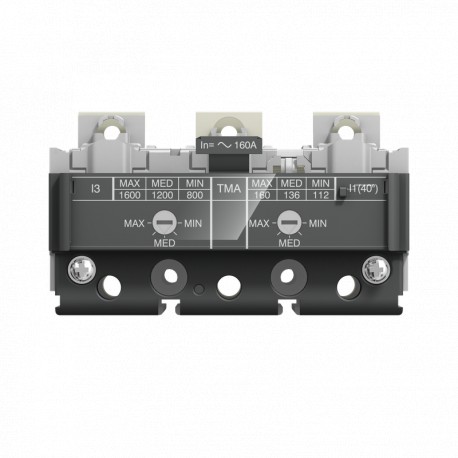

1SDA067234R1 ABB Rele Ekip TMA 100-1000 3P XT2
1SDA067234R1
067234
ABB
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 1SDA067234R1 ABB Rele Ekip TMA 100-1000 3P XT2 unit functions as a thermal-magnetic release mechanism that integrates into three-pole circuit breakers for dependable overload protection. Industrial system designers rely on these components to maintain safe current thresholds across electrical distribution lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- E-Number (Finland): 3640838
- EAN: 8015644011369
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.8 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 145 mm
- Package Level 1 Height: 75 mm
- Package Level 1 Depth / Length: 95 mm
- Package Level 1 Gross Weight: 0.9 kg
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| E-Number (Finland) | 3640838 |
| EAN | 8015644011369 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.8 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 145 mm |
| Package Level 1 Height | 75 mm |
| Package Level 1 Depth / Length | 95 mm |
| Package Level 1 Gross Weight | 0.9 kg |
| Package Level 1 EAN | 8015644011369 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Number of Poles | 3 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Rated Current (In) | 100 A |
| Release | TMA |
| Release Type | Thermomagnetic |
| Standards | IEC60947-2 |
| Suitable For | XT2 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0505 |
| Classifications | |
| ETIM 7 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 8 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370418 |
