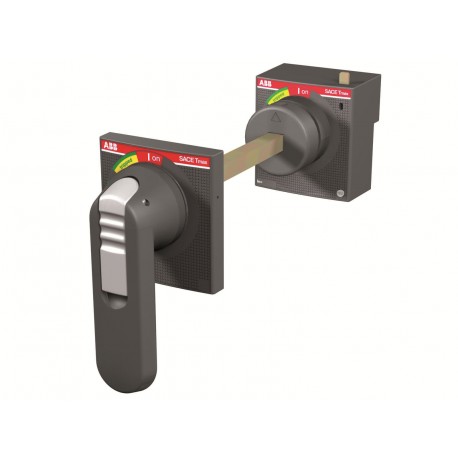

ABB 1SDA066583R1 1SDA066583R1 ABB RHE LH F/P FORWARDED CONTROLLER XT1/4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA066583R1 ABB RHE LH F/P FORWARDED CONTROLLER XT1/4

1SDA066583R1

066583

ABB

1 Pcs.

RHE_LH F/P FORWARDED CONTROLLER - XT1/4 RHE_H LH XT1...XT4 STAND. RETURNED

Automation > Handle for power circuit breaker
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A forward controller handle mechanism mounts onto electrical enclosures to give operators direct mechanical command over internal molded case circuit breakers during standard and emergency conditions. This Abb hardware component 1SDA066583R1 delivers reliable actuation for standard switchgear arrangements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXTALHNDLST
  • E-Number (Norway): 4381183
  • EAN: 8015644693411
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.16 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 130 mm
  • Package Level 1 Height: 135 mm
  • Package Level 1 Depth / Length: 145 mm

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXTALHNDLST
E-Number (Norway)4381183
EAN8015644693411
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.16 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width130 mm
Package Level 1 Height135 mm
Package Level 1 Depth / Length145 mm
Package Level 1 Gross Weight0.24 kg
Package Level 1 EAN8015644693411
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT1, XT2, XT3, XT4
Suitable for Product ClassSACE Tmax XT
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000719R0607
External Classifications and Standards
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
Object Classification CodeQ
UNSPSC31162801
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370414
