View larger
Images are for illustrative purposes only. Please refer to data sheet for details

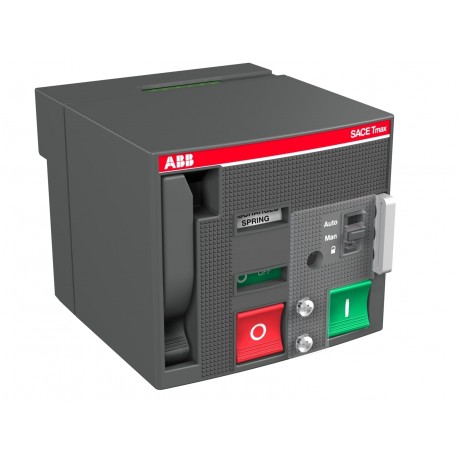

1SDA066474R1 ABB MOE-E CONTROL MOTOR ELECT. 480-525VAC
1SDA066474R1
066474
ABB
1 Pcs.
MOE-E CONTROL MOTOR ELECT. 480-525VAC
MOE-E XT2-XT4 480..525V ac X REM.CONTR
Automation > Motor operator for power circuit-breaker
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXTCEMOEE480-525 |
| E-Number (Norway) | 4381420 |
| EAN | 8015644003807 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 131 mm |
| Package Level 1 Height | 136 mm |
| Package Level 1 Depth / Length | 163 mm |
| Package Level 1 Gross Weight | 1.38 kg |
| Package Level 1 EAN | 8015644003807 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT2, XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Order Multiple | 1 piece |
| Rated Voltage (Ur) | 480 ... 525 V AC |
| Standards | IEC60947-2 |
| UL489 | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0601 |
| External Classifications and Standards | |
| ETIM 9 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 10 | EC001030 - Motor operator for power circuit-breaker |
| IDEA Granular Category Code (IGCC) | 4872 >> Motor operator for power circuit-breaker |
| Object Classification Code | Q |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370412 |
