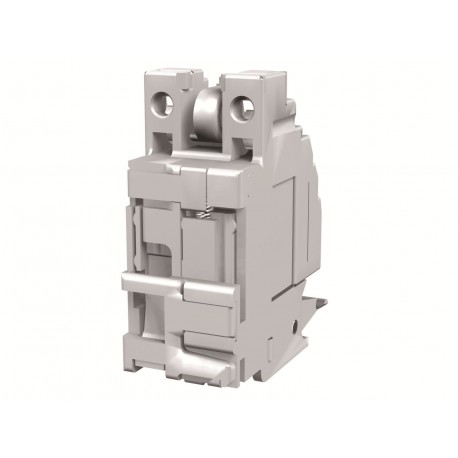

1SDA066391R1 ABB UVR MINIMA COIL 110VAC/VDC XT1/4
1SDA066391R1
066391
ABB
1 Pcs.
Automation > Under voltage coil
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB part number 1SDA066391R1 is an undervoltage release component designed for integration with compatible circuit protection systems. Such modules protect electrical setups by actively monitoring circuit potential and initiating an immediate trip sequence if voltage levels fall under safe operating thresholds, mitigating operational hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Order Code US and Canada: KXTAUVR4
- E-Number (Finland): 3638715
- EAN: 8015644003012
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.108 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 110 mm
- Package Level 1 Height: 60 mm
- Package Level 1 Depth / Length: 140 mm
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXTAUVR4 |
| E-Number (Finland) | 3638715 |
| EAN | 8015644003012 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.108 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Depth / Length | 140 mm |
| Package Level 1 Gross Weight | 0.114 kg |
| Package Level 1 EAN | 8015644003012 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Rated Voltage (Ur) | 110 ... 127 V AC |
| 110 ... 125 V DC | |
| Standards | IEC60947-2 |
| UL489 | |
| Suitable For | XT1, XT2, XT3, XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000719R0502 |
| Classifications | |
| ETIM 7 | EC001022 - Under voltage coil |
| ETIM 8 | EC001022 - Under voltage coil |
| ETIM 9 | EC001022 - Under voltage coil |
| IDEA Granular Category Code (IGCC) | 4148 >> Under voltage coil |
| Object Classification Code | Q |
| UNSPSC | 39121010 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370417 |
