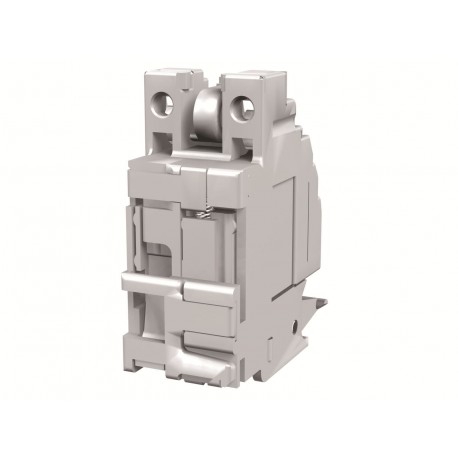

ABB 1SDA066316R1 1SDA066316R1 ABB SOR COIL APERT 110VAC/DC XT1/4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA066316R1 ABB SOR COIL APERT 110VAC/DC XT1/4

1SDA066316R1

066316

ABB

1 Pcs.

SOR COIL APERT 110VAC/DC - XT1/4 SOR XT1..XT4 110...127 Vac-110...125 Vdc

Automation > Switch spool for power circuit breaker
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A shunt opening release coil from Abb acts as a vital link between automation controllers and electrical protective devices, facilitating rapid remote interruption of current flow. This hardware ensures that automated safety logic can physically break a circuit when hazards are detected. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Order Code US and Canada: KXTASORD
  • E-Number (Finland): 3638706
  • EAN: 8015644692155
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.101 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 110 mm
  • Package Level 1 Height: 60 mm
  • Package Level 1 Depth / Length: 140 mm

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
Order Code US and CanadaKXTASORD
E-Number (Finland)3638706
EAN8015644692155
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.101 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width110 mm
Package Level 1 Height60 mm
Package Level 1 Depth / Length140 mm
Package Level 1 Gross Weight0.106 kg
Package Level 1 EAN8015644692155
Additional Information
Configuration TypeLoose or configurable
Current TypeAC/DC
Order Multiple1 piece
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Rated Voltage (Ur)110 ... 127 V AC
110 ... 125 V DC
StandardsIEC60947-2
UL489
Suitable ForXT1, XT2, XT3, XT4
Suitable for Product ClassSACE Tmax XT
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0205
1SDC210099D0205
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000719R0501
Classifications
ETIM 7EC002483 - Switch spool for power circuit breaker
ETIM 8EC002483 - Switch spool for power circuit breaker
ETIM 9EC002483 - Switch spool for power circuit breaker
IDEA Granular Category Code (IGCC)4879 >> Shunt release (for power circuit breaker)
Object Classification CodeQ
UNSPSC39121601
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370421
