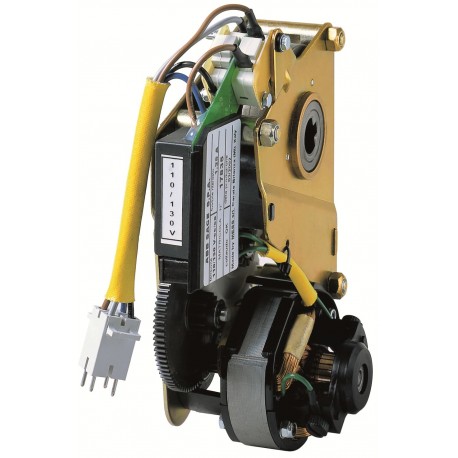

1SDA066053R1 ABB MOTOR CONTROL 220-250VAC/DC+MC 24Vdc
1SDA066053R1
066053
ABB
1 Pcs.
Automation > Motor operator for power circuit-breaker
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB MOTOR CONTROL 220-250VAC/DC+MC 24Vdc acts as a motorized operating mechanism that mounts onto high-capacity circuit breakers for remote electrical switching. Engineers integrate these devices into automated distribution systems to guarantee reliable mechanical actuation during routine and emergency switching scenarios. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- EAN: 8015644690380
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Gross Weight: 1.9 kg
- Package Level 1 EAN: 8015644690380
- Product Main Type: Accessories for Tmax T
- Product Name: Accessory
- Product Type: ACC
- Suitable For: E1, E2, E3, E4, E6, T8
- Suitable for Product Class: SACE Emax
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Ordering | |
| EAN | 8015644690380 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 1.9 kg |
| Package Level 1 EAN | 8015644690380 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | ACC |
| Suitable For | E1, E2, E3, E4, E6, T8 |
| Suitable for Product Class | SACE Emax |
| SACE Tmax T | |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Rated Voltage (Ur) | 220 ... 250 V AC/DC |
| 24 V DC | |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0207 |
| Declaration of Conformity - CE | 1SDL000165R0001 |
| Instructions and Manuals | 1SDC210033D0202 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
