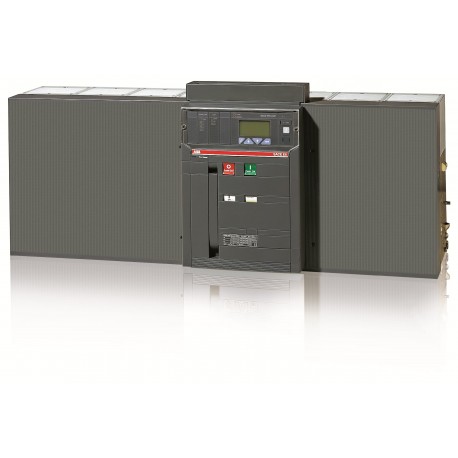

1SDA064749R1 ABB E6H/f 5000 PR123/DC 4P F VR

1SDA064749R1

064749

ABB

1 Pcs.

E6H/f 5000 PR123/DC 4P F VR E6H/f 5000 PR123/DC In=5000A 4p F VR

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1SDA064749R1 ABB E6H/f 5000 PR123/DC 4P F VR is a large-format air circuit breaker designed for high-capacity electrical power distribution systems. These robust circuit breakers are deployed in main switchboards and industrial substations to provide comprehensive overload and short-circuit protection for high-amperage infrastructure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A6076
  • EAN: 8015644676421
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 1034 mm
  • Product Net Height: 418 mm
  • Product Net Depth / Length: 302 mm
  • Product Net Weight: 135 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644676421
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width1034 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight135 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length1257 mm
Package Level 1 Gross Weight161 kg
Package Level 1 EAN8015644609139
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeDC
Electrical DurabilityUe = 1000 V 2000 cycle
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles4 / f
Power Loss700 W
Rated Current (In)5000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)5000 A
Rated Operational Voltage1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(750 V DC) 65 kA
(1000 V DC) 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(750 V DC) 65 kA
(1000 V DC) 65 kA
Rated Uninterrupted Current (Iu)5000 A
Rated Voltage (Ur)1000 V
ReleasePR123/DC
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE6
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Orientated
Certificates and Declarations
Data Sheet, Technical Information1SDC200012D0202
Declaration of Conformity - CE1SDL000165R0017
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH000635R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
