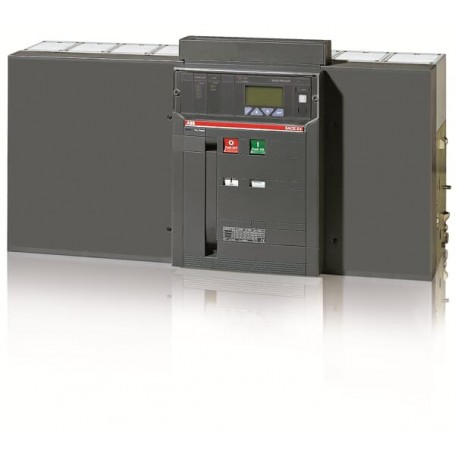

1SDA064740R1 ABB E4S/f 2000 PR123/DC 4P W MP

1SDA064740R1

064740

ABB

1 Pcs.

E4S/f 2000 PR123/DC 4P W MP SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E4S/f 2000A FOUR-POLE OVERCURRENT RELEASE PR123/DC R2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Abb, the E4S/f 2000 moving part component (1SDA064740R1) functions as part of a drawout circuit-breaker assembly in heavy-duty switchgear infrastructure. It permits safe racking and isolation of four-pole overcurrent protection systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Abb
  • Manufacturer part number: 1SDA064740R1
  • Catalogue code: 064740
  • Catalogue title: 1SDA064740R1 ABB E4S/f 2000 PR123/DC 4P W MP
  • Manufacturer summary: E4S/f 2000 PR123/DC 4P W MP SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E4S/f 2000A FOUR-POLE OVERCURRENT RELEASE PR123/DC R2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED

More info

▲

b'

General Information

Extended Product Type:
E4S/f2000PR123/DCIn=2000A4pWMP
Product ID:
1SDA064740R1
EAN:
8015644676339
Catalog Description:
E4S/f 2000 PR123/DC In=2000A 4p W MP
Long Description:
SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E4S/f 2000A FOUR-POLE OVERCURRENT RELEASE PR123/DC R2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
