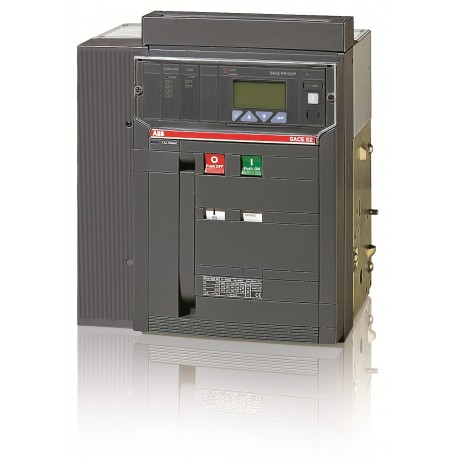

ABB 1SDA064683R1 1SDA064683R1 ABB E2B800 PR123/DC 4P W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA064683R1 ABB E2B800 PR123/DC 4P W MP

1SDA064683R1

064683

ABB

1 Pcs.

E2B800 PR123/DC 4P W MP E2B 800 PR123/DC In=800A 4p W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

1SDA064683R1 ABB E2B800 PR123/DC 4P W MP functions as a specialized air circuit breaker designed to manage and protect direct current electrical distribution networks against severe fault conditions. These robust devices provide reliable isolation and trip protection in renewable energy and industrial DC systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A6076
  • EAN: 8015644675769
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 414 mm
  • Product Net Height: 461 mm
  • Product Net Depth / Length: 396.5 mm
  • Product Net Weight: 61 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 615 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644675769
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width414 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight61 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight68 kg
Package Level 1 EAN8015644609139
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeDC
Electrical DurabilityUe = 1000 V 15000 cycle
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles4P
Power Loss96 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)800 A
Rated Operational Voltage1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(750 V DC) 25 kA
(1000 V DC) 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(750 V DC) 25 kA
(1000 V DC) 25 kA
Rated Uninterrupted Current (Iu)800 A
Rated Voltage (Ur)1000 V
ReleasePR123/DC
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE2
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200012D0202
Declaration of Conformity - CE1SDL000165R0014
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH000635R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
