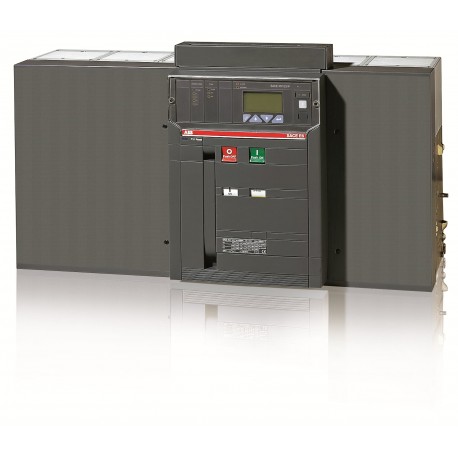

ABB 1SDA064658R1 1SDA064658R1 ABB E6H5000 PR122/DC 3P F VR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA064658R1 ABB E6H5000 PR122/DC 3P F VR

1SDA064658R1

064658

ABB

1 Pcs.

E6H5000 PR122/DC 3P F VR E6H 5000 PR122/DC In=5000A 3p F VR More details

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A direct current air circuit breaker is specifically engineered to protect high-voltage DC distribution systems, renewable energy installations, and industrial DC motor applications. It safely interrupts substantial DC fault currents where traditional AC breakers cannot be used. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A6076
  • EAN: 8015644675516
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 782 mm
  • Product Net Height: 418 mm
  • Product Net Depth / Length: 302 mm
  • Product Net Weight: 112 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644675516
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width782 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight112 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight133 kg
Package Level 1 EAN8015644609139
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeDC
Electrical DurabilityUe = 1000 V 2000 cycle
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles3P
Power Loss475 W
Rated Current (In)5000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)5000 A
Rated Operational Voltage750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(500 V DC) 100 kA
(750 V DC) 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(500 V DC) 100 kA
(750 V DC) 65 kA
Rated Uninterrupted Current (Iu)5000 A
Rated Voltage (Ur)750 V
ReleasePR122/DC
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE6
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Orientated
Certificates and Declarations
Data Sheet, Technical Information1SDC200012D0202
Declaration of Conformity - CE1SDL000165R0017
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH000635R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
