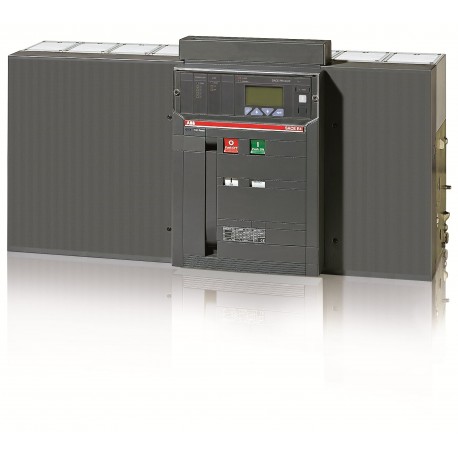

1SDA064654R1 ABB E4S/f 3200 PR122/DC 4P W MP

1SDA064654R1

064654

ABB

1 Pcs.

E4S/f 3200 PR122/DC 4P W MP E4S/f 3200 PR122/DC In=3200A 4p W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
