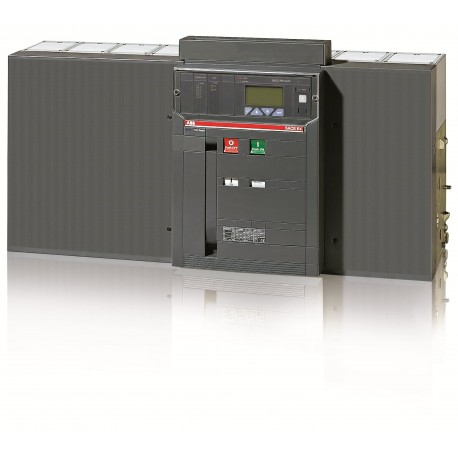

ABB 1SDA064642R1 1SDA064642R1 ABB E4S/f 2000 PR122/DC 4P F VR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA064642R1 ABB E4S/f 2000 PR122/DC 4P F VR

1SDA064642R1

064642

ABB

1 Pcs.

E4S/f 2000 PR122/DC 4P F VR E4S/f 2000 PR122/DC In=2000A 4p F VR

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB E4S/f 2000 PR122/DC 4P F VR is specialized for direct current power distribution systems, providing vital circuit protection and load management. Direct current breakers safely interrupt high-voltage DC fault currents in industrial and renewable applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A6076
  • EAN: 8015644675356
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 746 mm
  • Product Net Height: 418 mm
  • Product Net Depth / Length: 302 mm
  • Product Net Weight: 109 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 1000 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644675356
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width746 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight109 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight128 kg
Package Level 1 EAN8015644609139
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeDC
Electrical DurabilityUe = 1000 V 7000 cycle
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles4 / f
Power Loss136 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)2000 A
Rated Operational Voltage1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(750 V DC) 65 kA
(1000 V DC) 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(750 V DC) 65 kA
(1000 V DC) 50 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)1000 V
ReleasePR122/DC
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE4
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Orientated
Certificates and Declarations
Data Sheet, Technical Information1SDC200012D0202
Declaration of Conformity - CE1SDL000165R0016
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH000635R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409
