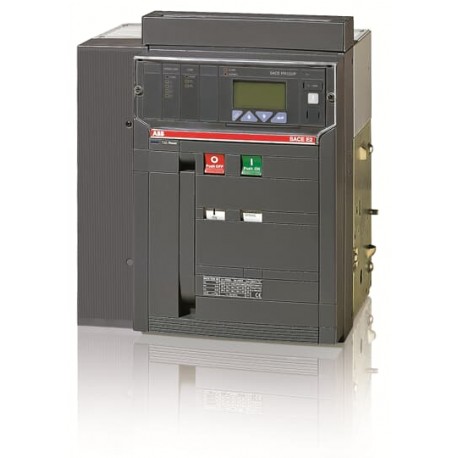

ABB 1SDA064595R1 1SDA064595R1 ABB E2B800 PR122/DC 4P W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA064595R1 ABB E2B800 PR122/DC 4P W MP

1SDA064595R1

064595

ABB

1 Pcs.

E2B800 PR122/DC 4P W MP E2B 800 PR122/DC In=800A 4p W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SDA064595R1 ABB E2B800 PR122/DC 4P W MP operates as an air circuit breaker designed to safely handle direct current power distribution and interrupt severe electrical faults. Heavy industrial facilities and renewable energy installations rely on these heavy-duty protective devices to maintain network integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A6076
  • EAN: 8015644674885
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 414 mm
  • Product Net Height: 461 mm
  • Product Net Depth / Length: 396.5 mm
  • Product Net Weight: 61 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 615 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644674885
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width414 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight61 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length615 mm
Package Level 1 EAN8015644609139
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeDC
Electrical DurabilityUe = 1000 V 15000 cycle
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles4P
Power Loss83 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)800 A
Rated Operational Voltage1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(750 V DC) 25 kA
(1000 V DC) 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(750 V DC) 25 kA
(1000 V DC) 25 kA
Rated Uninterrupted Current (Iu)800 A
Rated Voltage (Ur)1000 V
ReleasePR122/DC
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE2
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200012D0202
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000635R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
