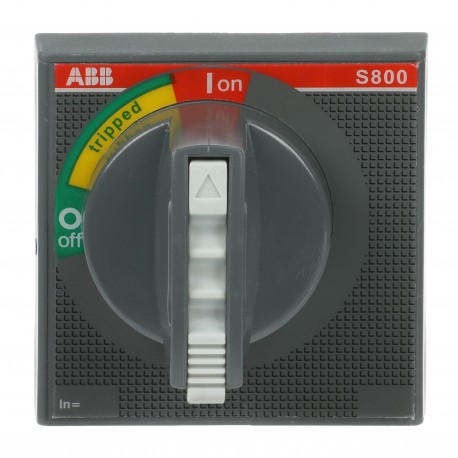

1SDA060150R0001 ABB S800-RHE-H Rotary External Control
1SDA060150R0001
060150
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB S800-RHE-H Rotary External Control is a panel-mounted operator mechanism that interfaces with high-performance circuit breakers to facilitate safe external actuation. External rotary handles are widely deployed in industrial electrical installations to provide reliable manual switching while keeping hazardous live components safely enclosed. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: S800P
- Color: Red
- RoHS Declaration: 9AKK107680A3903
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20190320
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Business
- Ambient Air Temperature: Operation -25 ... +60 °C
- Resistance to Vibrations: 1 mm 2 - 13.2 Hz
- Resistance to Shock acc. to IEC 60068-2-27: 5 g
- Environmental Information: 2CCY413207D0203
- Product Net Width: 76 mm
- Product Net Height: 76 mm
- Product Net Depth / Length: 67 mm
- Product Net Weight: 20 g
More info
▲| Technical | |
|---|---|
| Suitable For | S800P |
| S800S | |
| S800N | |
| S800C | |
| S800B | |
| S800HV | |
| S800U | |
| S800PV-SP | |
| S800PV-SD | |
| S800PV-M-H | |
| Remarks | Can be used together with S800-RHE-S (axial extension) with 500mm length and S800-RD (rotary drive adapter for 2-4-pole S800) |
| Design | |
| Color | Red |
| Material Compliance | |
| RoHS Declaration | 9AKK107680A3903 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20190320 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Resistance to Vibrations | 1 mm 2 - 13.2 Hz |
| 0.7g with Load 100% x Ie 13.2 - 100 Hz | |
| Resistance to Shock acc. to IEC 60068-2-27 | 5 g |
| 30 ms | |
| Environmental Information | 2CCY413207D0203 |
| Dimensions | |
| Product Net Width | 76 mm |
| Product Net Height | 76 mm |
| Product Net Depth / Length | 67 mm |
| Product Net Weight | 20 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 23 g |
| E-Number (Finland) | 3212416 |
| E-Number (Norway) | 1628877 |
| Certificates and Declarations | |
| Installation | |
| Instructions and Manuals | 9AKK106930A3418 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC413003C0208 |
| External Classifications and Standards | |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| UNSPSC | 31162801 |
| eClass | V11.0 : 27370414 |
| IDEA Granular Category Code (IGCC) | 3038 >> Handles or knobs |
| Object Classification Code | F |
