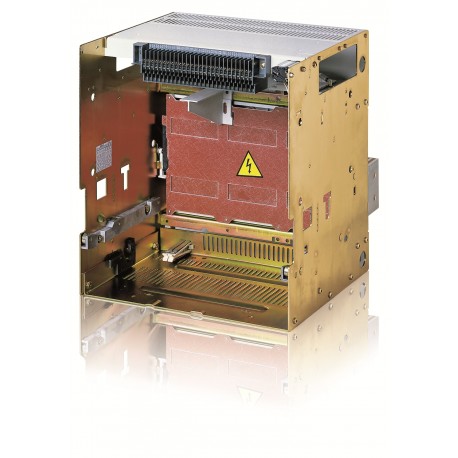

1SDA059900R1 ABB W TER FIXED BASE. FL-FL 3P 750VDC E3
1SDA059900R1
059900
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SDA059900R1 ABB W TER FIXED BASE. FL-FL 3P 750VDC E3 is a heavy-duty stationary terminal base utilized to mount and interconnect high-voltage direct current circuit breakers within electrical switchgear. Fixed mounting bases ensure stable physical placement and robust power transmission paths in demanding industrial applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 1SDL000142R0
- EAN: 8015644623241
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 432 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 37 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 545 mm
- Package Level 1 Height: 590 mm
- Package Level 1 Depth / Length: 600 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 1SDL000142R0 |
| Ordering | |
| EAN | 8015644623241 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 432 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 37 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 545 mm |
| Package Level 1 Height | 590 mm |
| Package Level 1 Depth / Length | 600 mm |
| Package Level 1 Gross Weight | 40 kg |
| Package Level 1 EAN | 8015644623241 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Fixed Part |
| Product Type | Fixed Part |
| Version | WFP |
| Technical | |
| Current Type | DC |
| Number of Poles | 3P |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 750 V |
| Standards | IEC |
| Sub-type | E3 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200012D0202 |
| Declaration of Conformity - CE | 1SDL000165R0015 |
| Instructions and Manuals | 1SDH000635R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
