View larger
Images are for illustrative purposes only. Please refer to data sheet for details

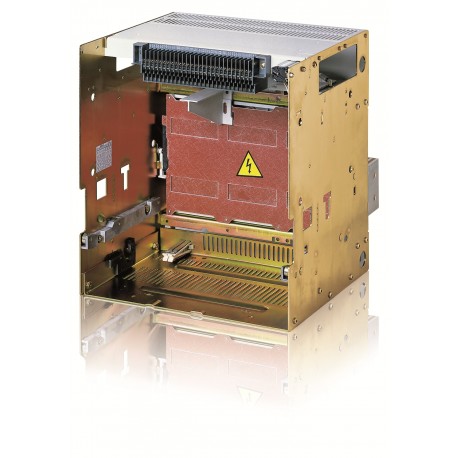

1SDA059892R1 ABB W TER FIXED BASE. HR-HR 3P 750VDC E3
1SDA059892R1
059892
ABB
1 Pcs.
W TER FIXED BASE. HR-HR 3P 750VDC - E3
E3 /E W FP 3p 750V DC HR-HR new
Automation > Chassis part power circuit breaker
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 1SDL000142R0 |
| Ordering | |
| EAN | 8015644623166 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 432 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 37 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 545 mm |
| Package Level 1 Height | 590 mm |
| Package Level 1 Depth / Length | 600 mm |
| Package Level 1 Gross Weight | 40 kg |
| Package Level 1 EAN | 8015644623166 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Fixed Part |
| Product Type | Fixed Part |
| Version | WFP |
| Technical | |
| Current Type | DC |
| Number of Poles | 3P |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 750 V |
| Standards | IEC |
| Sub-type | E3 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200012D0202 |
| Declaration of Conformity - CE | 1SDL000165R0015 |
| Instructions and Manuals | 1SDH000635R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
