ABB 1SDA059082R1 1SDA059082R1 ABB E4H/E/MS 4000 3P F HR 750VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

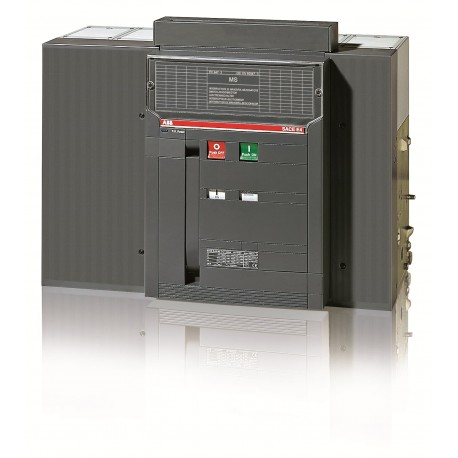

1SDA059082R1 ABB E4H/E/MS 4000 3P F HR 750VDC

1SDA059082R1

059082

ABB

1 Pcs.

E4H/E/MS 4000 3P F HR 750VDC E4H/E MS 4000 3p 750V DC F HR new

Connectors > Switch disconnector
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This is an Abb 1SDA059082R1 high-current air circuit breaker optimized for direct current (DC) industrial distribution and protection applications. Large-scale circuit breakers protect heavy electrical infrastructure from catastrophic fault damage. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC011025D0201
  • Environmental Information: 9AKK10103A6076
  • EAN: 8015644614416
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 566 mm
  • Product Net Height: 418 mm
  • Product Net Depth / Length: 302 mm
  • Product Net Weight: 81 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 785 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644614416
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width566 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight81 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight95 kg
Package Level 1 EAN8015644614416
Additional Information
Product Main TypeSACE Emax
Product NameSwitch Disconnector
Product TypeSwitch-disconnector
VersionF
Technical
Current TypeDC
Electrical Durability5000 cycle
10 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles3P
Power Loss360 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)4000 A
Rated Operational Voltage750 V DC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)750 V
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE4
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200012D0202
Declaration of Conformity - CE1SDL000165R0016
Instructions and Manuals1SDH000635R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
