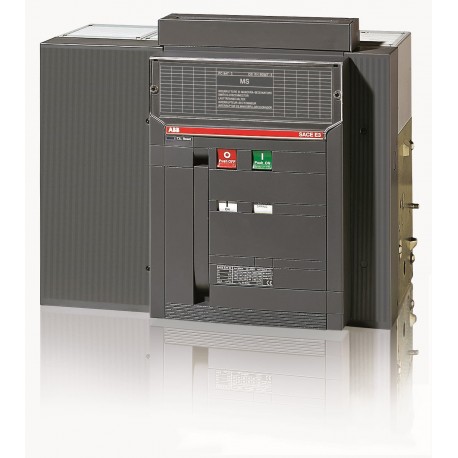

1SDA059066R1 ABB E3H/E MS 2000 4P F HR 1000VDC
1SDA059066R1
059066
ABB
1 Pcs.
E3H/E MS 2000 4P F HR 1000VDC
E3H/E MS 2000 4p 1000V DC F HR new
Connectors > Switch disconnector
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644614256 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 530 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 76 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 90 kg |
| Package Level 1 EAN | 8015644614256 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Switch Disconnector |
| Product Type | Switch-disconnector |
| Version | F |
| Technical | |
| Current Type | DC |
| Electrical Durability | 9000 cycle |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 130 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2000 A |
| Rated Operational Voltage | 1000 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 40 kA |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 1000 V |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E3 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200012D0202 |
| Declaration of Conformity - CE | 1SDL000165R0015 |
| Instructions and Manuals | 1SDH000635R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 2000 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 2000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 2000 A |
| Rated short-time withstand current lcw (EF007050) | 40 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
