ABB 1SDA059045R1 1SDA059045R1 ABB E1B/E MS 800 3P W MP 750VDC View larger

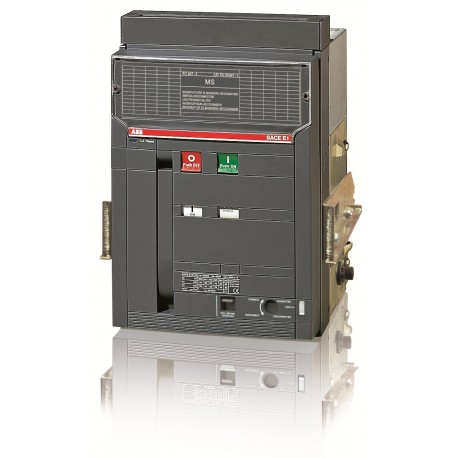

Images are for illustrative purposes only. Please refer to data sheet for details

1SDA059045R1 ABB E1B/E MS 800 3P W MP 750VDC

1SDA059045R1

059045

ABB

1 Pcs.

E1B/E MS 800 3P W MP 750VDC E1B/E MS 800 3p 750V DC W MP new

Connectors > Switch disconnector
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1SDA059045R1 E1B/E MS 800 3P W MP 750VDC is a specialized heavy-duty circuit breaker component built for high-voltage direct current power distribution networks and renewable energy installations. Such devices handle major fault currents and provide reliable circuit protection in large-scale infrastructure projects. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A6076
  • EAN: 8015644614041
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 324 mm
  • Product Net Height: 461 mm
  • Product Net Depth / Length: 396.5 mm
  • Product Net Weight: 44 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 515 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644614041
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width324 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight44 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight55 kg
Package Level 1 EAN8015644614041
Additional Information
Product Main TypeSACE Emax
Product NameSwitch Disconnector
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeDC
Electrical Durability10000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss95 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)800 A
Rated Operational Voltage750 V DC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 20 kA
Rated Uninterrupted Current (Iu)800 A
Rated Voltage (Ur)750 V
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE1
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200012D0202
Declaration of Conformity - CE1SDL000165R0013
Instructions and Manuals1SDH000635R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
