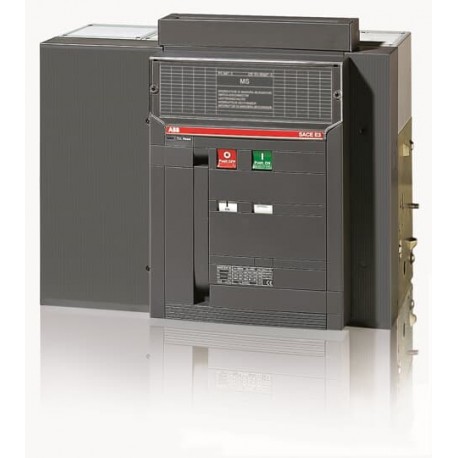

ABB 1SDA059022R1 1SDA059022R1 ABB E3H/E MS 1250 4P F HR 1150VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA059022R1 ABB E3H/E MS 1250 4P F HR 1150VAC

1SDA059022R1

059022

ABB

1 Pcs.

E3H/E MS 1250 4P F HR 1150VAC E3H/E MS 1250 4p 1150V AC F HR new

Connectors > Switch disconnector
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB E3H/E MS 1250 4P F HR 1150VAC switch disconnector provides robust current control and isolation for high-voltage power distribution systems. Large-scale switch disconnectors are standard in electrical substations and industrial plants to manage heavy electrical loads safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A6076
  • EAN: 8015644613815
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85352100
  • Product Net Width: 530 mm
  • Product Net Height: 418 mm
  • Product Net Depth / Length: 302 mm
  • Product Net Weight: 76 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 785 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644613815
Minimum Order Quantity1 piece
Customs Tariff Number85352100
Dimensions
Product Net Width530 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight76 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight90 kg
Package Level 1 EAN8015644613815
Additional Information
Product Main TypeSACE Emax
Product NameSwitch Disconnector
Product TypeSwitch-disconnector
VersionF
Technical
Current TypeAC
Electrical Durability500 cycle
20 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles4P
Power Loss60 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1250 V
Rated Operational Current (Ie)1250 A
Rated Operational Voltage1150 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 30 kA
Rated Uninterrupted Current (Iu)1250 A
Rated Voltage (Ur)1150 V
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE3
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0015
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
