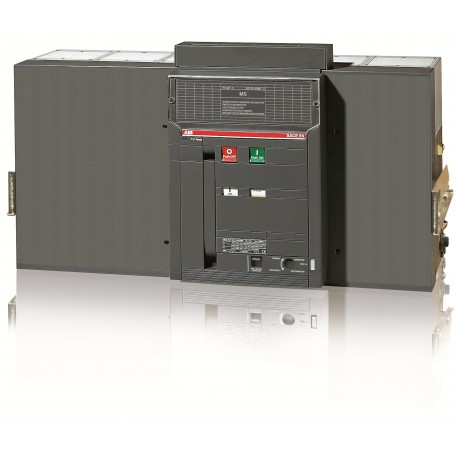

1SDA058916R1 ABB E6H/E/MS 4000 3P W MP 750VDC

1SDA058916R1

058916

ABB

1 Pcs.

E6H/E/MS 4000 3P W MP 750VDC E6H/E/MS 4000 3p W MP 750V DC new

Connectors > Switch disconnector
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy-duty circuit breakers and switch disconnectors protect high-amperage power distribution networks by safely interrupting overload and short-circuit currents. Manufactured by Abb, this 1SDA058916R1 ABB E6H/E/MS 4000 3P W MP 750VDC offers robust performance built for demanding heavy industrial energy management architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A6076
  • EAN: 8015644612696
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 810 mm
  • Product Net Height: 461 mm
  • Product Net Depth / Length: 396.5 mm
  • Product Net Weight: 116 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644612696
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width810 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight116 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight138 kg
Package Level 1 EAN8015644612696
Additional Information
Product Main TypeSACE Emax
Product NameSwitch Disconnector
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeDC
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles3P
Power Loss445 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)4000 A
Rated Operational Voltage750 V DC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)750 V
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE6
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200012D0202
Declaration of Conformity - CE1SDL000165R0017
Instructions and Manuals1SDH000635R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
