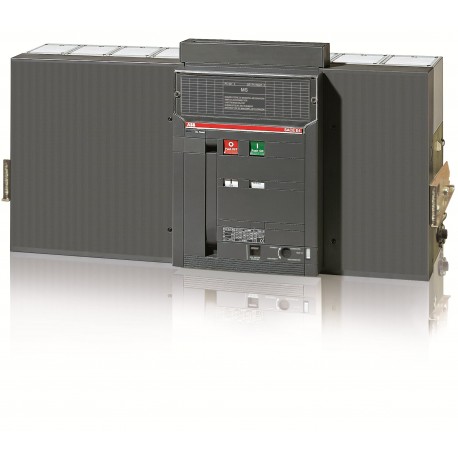

1SDA058914R1 ABB E4H/E/F/MS 4000 4P W MP 1000VDC
1SDA058914R1
058914
ABB
1 Pcs.
Connectors > Switch disconnector
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for high-voltage direct current systems, this ABB 1SDA058914R1 E4H/E/F/MS 4000 4P W MP disconnects massive electrical loads safely. Heavy-duty DC circuit breakers and switches protect critical industrial power infrastructure from overloads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Information: 9AKK10103A6076
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- EAN: 8015644612672
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 774 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 117 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Circular Value | |
|---|---|
| Environmental Information | 9AKK10103A6076 |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Ordering | |
| EAN | 8015644612672 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 774 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 117 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 1000 mm |
| Package Level 1 Gross Weight | 116 kg |
| Package Level 1 EAN | 8015644609139 |
| Additional Information | |
| Current Type | DC |
| Electrical Durability | 5000 cycle |
| 10 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4 / f |
| Power Loss | 660 W |
| Product Main Type | SACE Emax |
| Product Name | Switch Disconnector |
| Product Type | Air Circuit Breaker |
| Rated Current (In) | 4000 A |
| Rated Voltage (Ur) | 1000 V |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 4000 A |
| Rated Operational Voltage | 1000 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E4 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Version | W |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200012D0202 |
| Declaration of Conformity - CE | 1SDL000165R0016 |
| Instructions and Manuals | 1SDH000635R0002 |
| Classifications | |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
