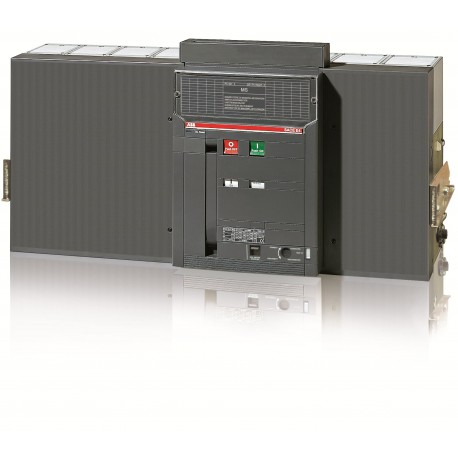

ABB 1SDA058912R1 1SDA058912R1 ABB E4H/E/f/MS 3200 4P W MP 1000VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA058912R1 ABB E4H/E/f/MS 3200 4P W MP 1000VDC

1SDA058912R1

058912

ABB

1 Pcs.

E4H/E/f/MS 3200 4P W MP 1000VDC E4H/E/f/MS 3200 4p W MP 1000V DC new

Connectors > Switch disconnector
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB E4H/E/f/MS 3200 4P W MP 1000VDC circuit component is a heavy-duty switching mechanism built for high-capacity direct current applications. These devices are deployed within expansive power distribution and conversion frameworks to manage severe electrical loads safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A6076
  • EAN: 8015644612658
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 774 mm
  • Product Net Height: 461 mm
  • Product Net Depth / Length: 396.5 mm
  • Product Net Weight: 96 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 1000 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644612658
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width774 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight96 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight116 kg
Package Level 1 EAN8015644612658
Additional Information
Product Main TypeSACE Emax
Product NameSwitch Disconnector
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeDC
Electrical Durability7000 cycle
10 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles4 / f
Power Loss425 W
Rated Current (In)3200 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)3200 A
Rated Operational Voltage1000 V DC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
Rated Uninterrupted Current (Iu)3200 A
Rated Voltage (Ur)1000 V
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE4
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200012D0202
Declaration of Conformity - CE1SDL000165R0016
Instructions and Manuals1SDH000635R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
