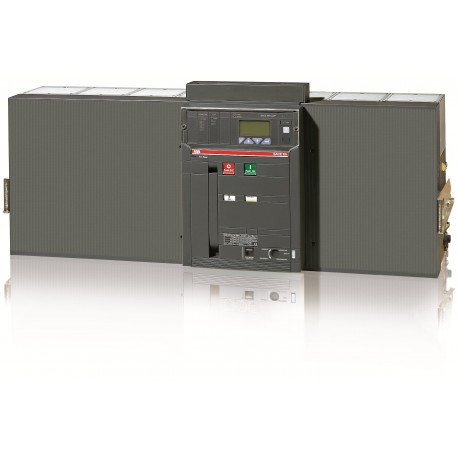

ABB 1SDA057037R1 1SDA057037R1 ABB E6H6300 PR122/P LSIG 4P W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA057037R1 ABB E6H6300 PR122/P LSIG 4P W MP

1SDA057037R1

057037

ABB

1 Pcs.

E6H6300 PR122/P LSIG 4P W MP E6H 6300 PR122/P-LSIG In=6300A 4p W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIPa68e2088-c5c5-48bd-b4b5-42bac0adbb6c Italy
Simplified SCIPe6d367e9-3e22-4418-9205-2dc8cee6d79e Finland
f0c07c44-5fb4-4ffb-9fd9-a6eb31a5903d Norway
d97fcaef-2dea-45b2-ae2c-1a5435ee5866 Belgium
ec895b27-41d7-43c9-8a57-9a315dfff55c Germany
50bdd58e-505a-47f8-82d5-3b02a03cca63 Poland
44e5f06c-66b5-4b98-836c-045dfb63ef83 France
737d28b7-a856-4a62-9def-a07fa64efbf8 Poland
0bff00e2-f652-49ff-b4b6-3e440dce29b5 Czech Republic
5f7fbc74-aabf-41a1-aa66-1ce9276138e1 Poland
7d5c125c-6799-4efe-929f-a4475de545b5 Germany
24657cb7-2ac2-40bb-8f26-ea19c2e6ca41 Germany
74f5fd85-e15f-44be-a05b-dbf84032696b Denmark
099f3d79-c7c2-4e26-b0e1-a75322955b75 Estonia
602e1a58-d02f-473b-bc32-47c098d1a878 Portugal
0aaf05e5-ebb6-43c0-bb5a-170a7b372f7c Greece
c50bf40d-093b-46b5-b8c9-e53691e1eb4e Sweden
ee1dedf0-451a-4e03-a27f-8dc6fe3dbba7 Bulgaria
8766a795-df7e-4a6b-b6f1-2ce0bf6c4442 Croatia
7e38c3d3-e853-4f53-b6e0-c758a0724562 Netherlands
67e91f80-088b-4ab9-bdb3-51727dca7ee3 Hungary
6558eb91-9b74-4ebc-aebb-14f27bc5c1d6 Belgium
f7a20e49-d4dc-45ba-8418-a4e4f0b97e67 Hungary
b4c055f1-4d09-41e7-85aa-4130bc8c8248 Germany
22f07c78-a5b0-45df-a4bd-43446fadfd2f Sweden
7a83e696-f008-42d3-a702-44b71af9d911 Germany
c17d1439-f80c-4673-bbd2-73298022ef0e Spain
a183967a-6fd3-48ed-b8e6-e9fec7a3516f France
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644583774
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width936 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight134 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length1127 mm
Package Level 1 Gross Weight157 kg
Package Level 1 EAN8015644583774
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 2000 cycle
Ue = 500 ... 690 V 1500 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles4P
Power Loss1100 W
Rated Current (In)6300 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)6300 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 85 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Uninterrupted Current (Iu)6300 A
Rated Voltage (Ur)690 V
ReleasePR122/P-LSIG
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE6
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0017
Instructions and Manuals1SDH000460R0002
1SDH000460R0102
External Classifications and Standards
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
