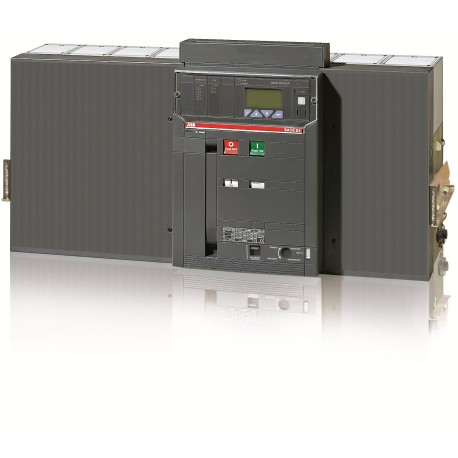

1SDA056908R1 ABB E4V3200 PR122/P LSI 4P W MP
1SDA056908R1
056908
ABB
1 Pcs.
E4V3200 PR122/P LSI 4P W MP
E4V 3200 PR122/P-LSI In=3200A 4p W MP
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Extended Product Type:
- E4V3200PR122/P-LSIIn=3200A4pWMP
- Product ID:
- 1SDA056908R1
- EAN:
- 8015644582487
- Catalog Description:
- E4V 3200 PR122/P-LSI In=3200A 4p W MP
- Long Description:
- SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E4V 3200A FOUR-POLE OVERCURRENT RELEASE PR122/P-LSI R3200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Ordering
- EAN:
- 8015644582487
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362090
Dimensions
- Product Net Width:
- 684mm
- Product Net Height:
- 461mm
- Product Net Depth / Length:
- 396.5mm
- Product Net Weight:
- 96kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 515 mm
- Package Level 1 Height:
- 600 mm
- Package Level 1 Depth / Length:
- 920 mm
- Package Level 1 Gross Weight:
- 116 kg
- Package Level 1 EAN:
- 8015644582487
Environmental
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT):
- Document availability on demand
- Environmental Information:
- 9AKK10103A6076
- REACH Declaration:
- 9AKK108466A1425
- RoHS Information:
- 9AKK108466A1424
Additional Information
- Current Type:
- AC
- Electrical Durability:
- Ue =< 440 V 7000 cycle
Ue = 500 ... 690 V 7000 cycle
10 cycles per hour
- Mechanical Durability:
- 15000 cycle
60 cycles per hour
- Number of Poles:
- 4
- Power Loss:
- 425 W
- Product Main Type:
- SACE Emax
- Product Name:
- Air Circuit Breaker
- Product Type:
- Air Circuit Breaker
- Rated Current (In):
- 3200 A
- Rated Voltage (Ur):
- 690 V
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Current (Ie):
- 3200 A
- Rated Operational Voltage:
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (220 V AC) 150 kA
(230 V AC) 150 kA
(380 V AC) 150 kA
(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 130 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
- Rated Short-time Withstand Current Low Voltage (Icw):
- for 1 s 100 kA
for 3 s 75 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (220 V AC) 150 kA
(230 V AC) 150 kA
(380 V AC) 150 kA
(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 130 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
- Rated Uninterrupted Current (Iu):
- 3200 A
- Release:
- PR122/P-LSI
- Release Type:
- EL
- Short-Circuit Performance Level:
- V
- Standards:
- IEC
- Sub-type:
- E4
- Terminal Connection Type:
- Withdrawable Circuit-Breakers
- Version:
- W
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SDC200006D0209
- Declaration of Conformity - CE:
- 1SDL000165R0016
- Environmental Information:
- 9AKK10103A6076
- Instructions and Manuals:
- 1SDH000460R0002
1SDH000460R0102
- REACH Declaration:
- 9AKK108466A1425
- RoHS Information:
- 9AKK108466A1424
Classifications
- ETIM 4:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 5:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 6:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 7:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- ETIM 8:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code:
- Q
- WEEE Category:
- 4. Large Equipment (Any External Dimension More Than 50 cm)
