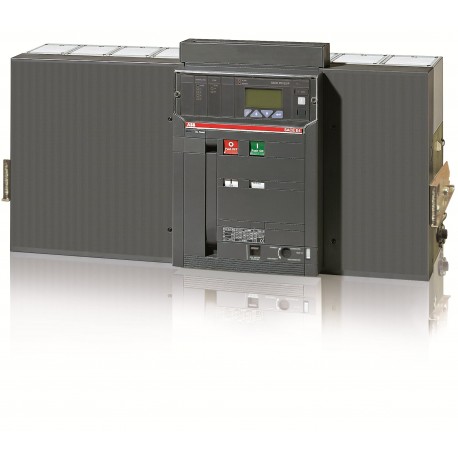

ABB 1SDA056815R1 1SDA056815R1 ABB E4S4000 PR123/P LSIG 4P W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA056815R1 ABB E4S4000 PR123/P LSIG 4P W MP

1SDA056815R1

056815

ABB

1 Pcs.

E4S4000 PR123/P LSIG 4P W MP E4S 4000 PR123/P-LSIG In=4000A 4p W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIPdfafa742-ef6e-452e-b31a-ba0526463159 Italy
Simplified SCIP83387064-d024-4aef-bee9-3efd5d81f474 France
ee798ef2-d659-4292-b31b-0450141d99b8 Hungary
3e25332e-2cce-4d05-8390-955f97586e1f Spain
965244f7-2abf-4e29-b24c-392e1ee6f9c4 Sweden
5f79dea3-2006-439c-bf25-17f09dc20dab Germany
7bce7e2b-8ae5-44c3-8d27-73fe90dd05e3 Germany
fbb8751c-d38b-443d-b15c-9b6faa8552d0 Belgium
8ef8bd85-e4ac-4600-b034-9443d218b36b Germany
a5db6076-0502-44da-aaf5-930dce66c182 Poland
703d7849-fb2c-453a-835f-33e48e533888 Finland
5ef41504-712e-4e3c-967c-627ca10ad7ad Germany
4a87debd-973c-4e58-8703-acaab553873d Belgium
e3e8a5f6-989e-4ae4-9982-bea8218e1e66 Denmark
f5bf66e9-e20f-4044-91a3-7ada91d4e9a6 Norway
983f062d-9064-4183-9c7f-4a819f82d1bb Portugal
675c2693-57fc-4595-8e02-0f67340cc70a Greece
51889399-1dc3-449d-93e7-8d3ee38eba59 Sweden
4d606c4c-1857-4761-8520-40c5238b58a5 Bulgaria
7493952e-d658-4ed0-9367-6051f0463588 Hungary
db3e8fd9-7d2f-43ad-a778-aee4057d9d96 Netherlands
70ebe291-441e-4637-885c-3420a7914236 Estonia
dc51fd3a-bddf-4c2a-8faa-5a6a46900a20 Croatia
d6b34421-e8b6-4e18-bc62-33865d67bc7b Germany
5673adf6-59ca-4a0f-b132-4b95869b6133 Czech Republic
402049fa-50af-4842-8d18-eb0107f956b7 Poland
7bcfbd38-8ec1-4eab-b959-167bed3d203b France
fcf4b408-192e-49c1-9fbd-a4dc08078182 Poland
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644581558
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width684 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight96 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length920 mm
Package Level 1 Gross Weight116 kg
Package Level 1 EAN8015644581558
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 5000 cycle
Ue = 500 ... 690 V 4000 cycle
10 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles4P
Power Loss660 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)4000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 75 kA
(230 V AC) 75 kA
(380 V AC) 75 kA
(400 V AC) 75 kA
(415 V AC) 75 kA
(440 V AC) 75 kA
(500 V AC) 75 kA
(660 V AC) 75 kA
(690 V AC) 75 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 75 kA
for 3 s 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 75 kA
(230 V AC) 75 kA
(380 V AC) 75 kA
(400 V AC) 75 kA
(415 V AC) 75 kA
(440 V AC) 75 kA
(500 V AC) 75 kA
(660 V AC) 75 kA
(690 V AC) 75 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)690 V
ReleasePR123/P-LSIG
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE4
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0016
Instructions and Manuals1SDH000460R0002
1SDH000460R0102
External Classifications and Standards
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
