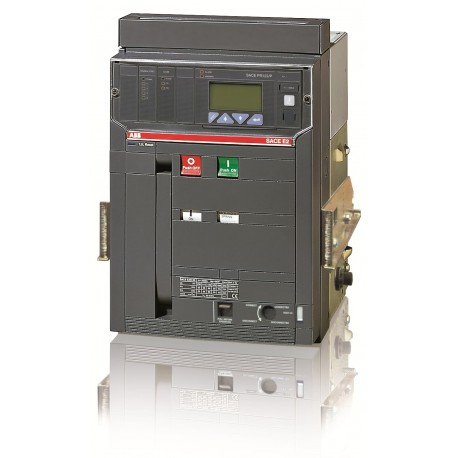

1SDA056101R1 ABB E2L1600 PR122/P LSIG 3P W MP
1SDA056101R1
056101
ABB
1 Pcs.
E2L1600 PR122/P LSIG 3P W MP
E2L 1600 PR122/P-LSIG In=1600A 3p W MP
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 96647e58-840f-4cb2-8234-f1db787be3d8 Italy |
| Simplified SCIP | a708ce62-0af6-41dc-ba8d-b8a17c8061fb Netherlands |
| ab19a878-1b9b-4af0-b2b4-9ebf276e2036 Poland | |
| 00f8c05b-89a3-496d-adaa-3d2c075f9b76 Sweden | |
| 7844a11d-bbdf-4816-b225-64e31f85437f Portugal | |
| 73075d4e-50b5-4f82-a421-0f8fe7ea2f1b Belgium | |
| bb15a46d-bbab-417e-9943-8de0d7b3c93e Germany | |
| a23c76d7-696d-4d7b-b3bc-9fa970d2dae1 Germany | |
| 276924e3-143c-4782-82f9-2003f4dd17d8 Czech Republic | |
| 3434e418-a663-4cda-aa0d-cb14256d2b4a Bulgaria | |
| ba8eeb4b-d8bc-42bd-a712-e2ae24a20a71 Greece | |
| 7092ad66-c1a1-40e8-9b7c-4a043c17d222 Croatia | |
| a30078c7-94e3-43cf-b9ca-b358ad0f1714 Hungary | |
| 2b0aae62-4cb3-4c60-b165-15ccf9a0f102 France | |
| a2256df1-1fec-456d-8637-0219a5d984bb Germany | |
| a5cb8c13-3a24-4c33-bda8-d6352a9f1467 Germany | |
| 76c7f388-e9e4-4bfa-a78c-765984cbf2a7 Sweden | |
| 81a66281-83c0-4f97-a481-dc06a4016a72 Poland | |
| 67d79283-bd82-4546-9630-bbe887e3f0a2 Spain | |
| b2af37df-2ffb-48c8-b561-84dc026f4d03 Belgium | |
| 85198b62-f691-4cdc-8deb-c8b8666c3c0d France | |
| c4a96cd2-b8ea-4c74-87b0-ec6d62fac506 Germany | |
| dbef262b-fbe2-4fec-bd84-ee8119800f42 Poland | |
| 6dd57c16-9532-46ef-ba3c-bc9db0310ed7 Norway | |
| 37931222-31d4-4ef5-a16c-d41f6d011086 Finland | |
| 9b69acfa-14d4-491d-acf7-cadb488b2265 Denmark | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644574413 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644574413 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 3000 cycle |
| Ue = 500 ... 690 V 2000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 265 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 130 kA |
| (230 V AC) 130 kA | |
| (380 V AC) 130 kA | |
| (400 V AC) 130 kA | |
| (415 V AC) 130 kA | |
| (440 V AC) 110 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 130 kA |
| (230 V AC) 130 kA | |
| (380 V AC) 130 kA | |
| (400 V AC) 130 kA | |
| (415 V AC) 130 kA | |
| (440 V AC) 110 kA | |
| (500 V AC) 85 kA | |
| (660 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
